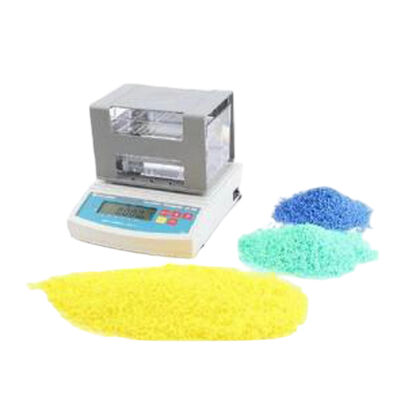

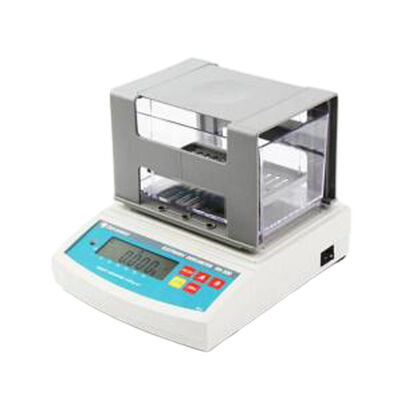

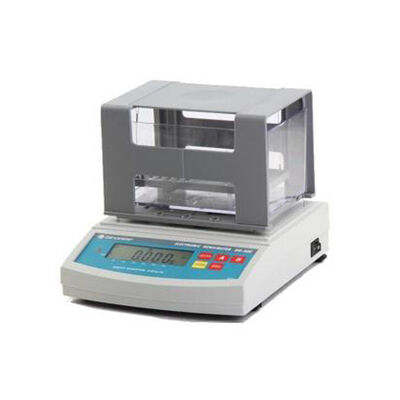

ASTM D792 ISO 2781 Densimeter Liquid and Solid Density Testing Machine ISO 1183 ASTM D297 High Accuracy Density Meter SG Tester

ASTM D792 ISO 2781 Densimeter Liquid and Solid Density Testing Machine ISO 1183 ASTM D297 High Accuracy Lab SG Density Meter

Product introduction

Rubber,  wire  and  cable,  aluminum  products,  plastic  particles,  powder  metallurgy,  mineral  and  rock, precision  ceramics,  glass  industry,  metal  products,  precision  ceramics,  refractory  materials,  magnetic materials, alloy  materials,  machinery  parts,  metal  recovery, minerals and  rock, cement  manufacturing, jewelry industry and other new materials research laboratory.

Reference standards

Based on: ASTM D792, ASTM D297, GB/T1033, GB/T2951, GB/T3850, GB/T533, HG4-1468, JIS K6268, ISO 2781, ISO 1183...And other standards.

Three, the principle: using Archimedes principle of buoyancy method, accurate, direct reading measurement value.

Functional features

1. Gold-plated ceramic capacitance sensor;

2. With the density testing device, liquid and solid density testing can be realized;

3. Density direct reading, subtracting tedious calculation;

4. Standard RS232 data output function can be easily connected to PC and printer.;

5. Automatic zero tracking, buzzer alarm, overload alarm function

6. Air mass of the measured object: ≥0.25g;

7. Buoyancy force of the measured object in the air: < -0.125;

8. Dimensions, 270*200*265;Weight;6.5 kg

9. Dimensions of integrated sink, 165* 115*85

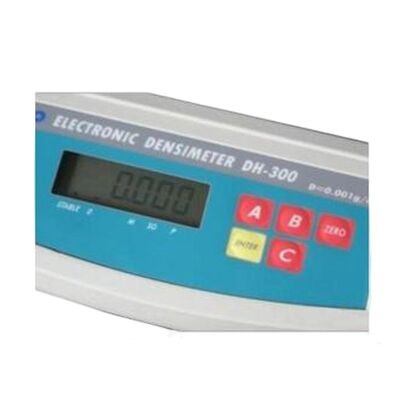

10. Blue backlight liquid crystal display;

Random accessories

1. host, 2. sink, 3. measuring table, 4. tweezers, 5. instructions, 6. weights, 7. windproof and dust cover, 8. a set of measuring particle accessories, 9. a set of measuring floating body accessories, and 10. power transformers

ASTM D792 ISO 2781 Densimeter Liquid and Solid Density Testing Machine ISO 1183 ASTM D297 High Accuracy Lab SG Density Meter

Technical Specification
