ASTM C338 Automatic Hanging Filament Method Glass Softening Point Tester Laboratory Glass Fibers Softening Point Test Equipment

Large Image : ASTM C338 Automatic Hanging Filament Method Glass Softening Point Tester Laboratory Glass Fibers Softening Point Test Equipment

Product Details:

Place of Origin:	Guangdong, China
Brand Name:	LONROY

Payment & Shipping Terms:

Minimum Order Quantity:	1

Contact Now

ASTM C338 Automatic Hanging Filament Method Glass Softening Point Tester Laboratory Glass Fibers Softening Point Test Equipment

Description

Type:	Testing Machine	Accuracy Class:	High Accuracy
Accuracy:	/	Application:	Auto Testing
Customized Support:	OEM, ODM, OBM	Power:	---
Protection Class:	Ip56	Voltage:	220 V
Warranty:	1 Year	Standard:	ASTM C-338
Highlight:	ASTM C338 glass softening point tester , automatic hanging filament method tester , laboratory glass fibers test equipment

ASTM C338 Automatic Hanging Filament Method Glass Softening Point Tester Laboratory Glass Fibers Softening Point Test Equipment

Introduction

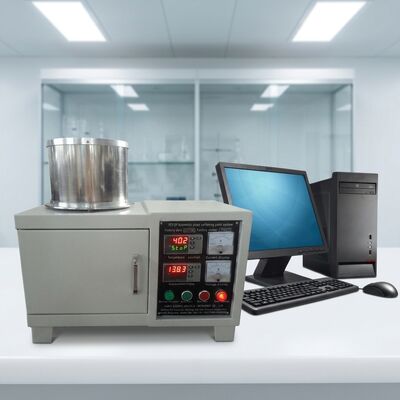

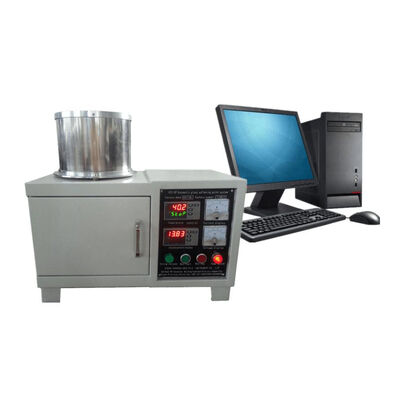

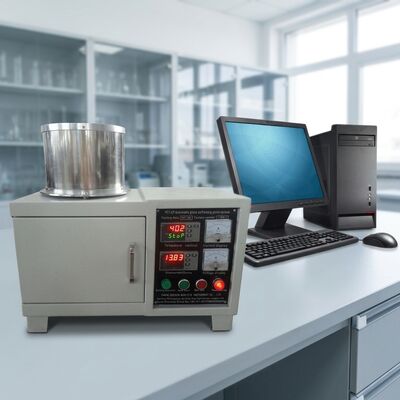

PCY-SP Glass Softening Point Tester (Automatic Hanging Filament Method)

This instrument is used to determine the softening temperature of glass fibers. It employs a grating displacement sensor to automatically track and detect the change in elongation of the glass fiber under different temperature conditions. The softening temperature is automatically analyzed by a computer that monitors the rate of change in elongation of the glass fiber at different temperatures. It conforms to the ASTM C-338 standard.

Instrument configuration

1. One testing host

2. One heating furnace

3. One set of testing software

4. One industrial computer

ASTM C338 Automatic Hanging Filament Method Glass Softening Point Tester Laboratory Glass Fibers Softening Point Test Equipment

Technical Specification

Core Temperature Index	Maximum temperature: 1200℃, operating temperature: 1000℃
Temperature Control Thermocouple	K-type, including control thermocouple and sample temperature measurement thermocouple
Temperature Control System	Intelligent PID automatic control, heating rate requirement 1-1.5℃/min, temperature control accuracy ±1℃
Fiber Elongation Tracking System	(Laser or grating) displacement sensor for automatic tracking, displacement measurement accuracy within ±0.5%FS
Data Acquisition System	Automatically collected and displayed on a computer via upper computer software
Dedicated Testing Software	Operates in a Windows XP Chinese operating system environment, designed according to ASTMC-338 standard, and can achieve fast and accurate data acquisition and information output in a comprehensive report format
Heating Rate Control	The heating rate can be controlled according to the temperature control mode and program mode selected by the user
