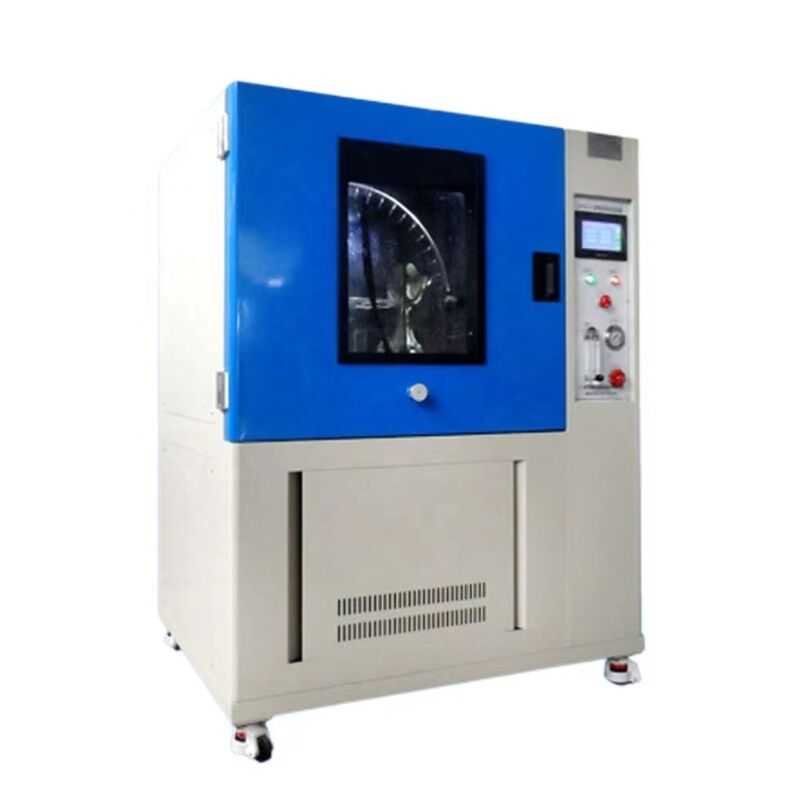

IPX1-4 Rain test Instrument (vertical Drip + Swing Pipe Rain) IEC 60529

Large Image : IPX1-4 Rain test Instrument (vertical Drip + Swing Pipe Rain) IEC 60529

Product Details:

Place of Origin:	Guangdong, China
Brand Name:	LONROY
Model Number:	LR-81

Payment & Shipping Terms:

Minimum Order Quantity:	1

Contact Now

IPX1-4 Rain test Instrument (vertical Drip + Swing Pipe Rain) IEC 60529

Description

Type:	Testing Machine	Accuracy Class:	High Accuracy
Accuracy:	±1%	Application:	Auto Testing, Lab Testing, Laboratory Testing
Customized Support:	OEM, ODM, OBM	Power:	---
Protection Class:	IP66	Voltage:	220 V
Warranty:	1 Year	Product Name:	Rain Test Instrument
Highlight:	IPX1-4 rain test instrument , vertical drip rain test chamber , swing pipe rain test equipment

IPX1-4 Rain test instrument (vertical drip + swing pipe rain) IEC60529

Design standard: According to IEC60529, GB4208-2017 "Shell protection level (IP code)", and GB7000.1 "Lamps Part I: General requirements and tests" requirements.

Equipment use:
This product is suitable for testing electrical products, enclosures and seals in the rain environment to ensure the good performance of equipment and components. Suitable for IPX1, IPX2, IPX3, IPX4 waterproof level test of products
Multi-functional vertical drip + swing pipe rain, a machine can be freely switched.
PLC touch screen control, easy operation, automatic stop after the test, no personnel on duty.
The equipment comes with water tank, saving resources.

IPX1-4 Rain test instrument (vertical drip + swing pipe rain) IEC60529
structural material:
1. The inner liner is stainless 304 steel
2, outer box stainless steel 304 stainless steel
3, the sample table is equipped with a circular turntable, the speed is adjustable

safety protection device:
1, power overload, short circuit protection
2, grounding protection
3. Water shortage protection
4, alarm warning

IPX1-4 Rain test instrument (vertical drip + swing pipe rain) IEC60529

Inner box size (mm)	1000x1000x1000(depth x width x height)
the test bench speed (rpm)	1~5 adjustable, turntable diameter :300mm,adjustable 15° tilt Angle, turntable height adjustable 200mm.
spray ring radius (mm)	300
spray pipe swing Angle range	45°, 90°, 180°(similar)
Blowhole diameter (mm)	medium 0.4
spray aperture spacing (mm)	50
Flow rate of each blowhole	0.07L /min +5%
water spray pressure (Kpa)	80-150
pendulum tube swing	maximum soil 150°
spray pipe swing speed	IP3 15 times /min; lP4 5 times /min
IP12	drip hole 0.4MM, each hole spacing 20X20MM. Drip area 600X600MM, height 80MM
test time	1-999,999min(can be set)
rain water pressure	80~150Kpa(adjustable)
the distance between the test sample and the test equipment is 200mm, after the test, the function test is carried out after the normal temperature is restored for 24H.
the box full stainless steel or powder, visible toughened glass window.
equipped with moderate circular turntable (for sample) speed adjustable
control system	self-developed touch screen control system.
Power supply	220V 50HZ
implementation standards	GB2423,38-90, GB4706.32-2004IEC-5129

name	Brand and origin	quantity	remark
7 inch touch screen controller	MGCE	1
Ac contactor	Snyder, France	1
Intermediate relay	Snyder, France	1
filter	Taiwan	1
Stepper motor	Hakushan Electric	1
sensor	Yangming, Taiwan	1
Button with light	Shanghai Tiande	1
fuse	Taiwan.	1
Mains switch	Snyder, France	1
Stainless steel pump	A surname	1

Tag:

Contact Person: Kaitlyn Wang

Tel: 19376687282

Fax: 86-769-83078748

Other Products

Explosion Proof Environment Test Chamber Constant Temperature And Humidity Test Chamber

Standard: IEC60068-2-75

Power Supply: 220V/50Hz

Warranty: 1 year

Delivery: 30 work days

Sensor: Pt100

408L 1000L Environment Test Chamber Programmable Temperature And Humidity Chamber

Volage: 380v

Delivery: 30 wrok days

Stand: IEC60068-2-75, IEC62262

Configuration: control system, turntable

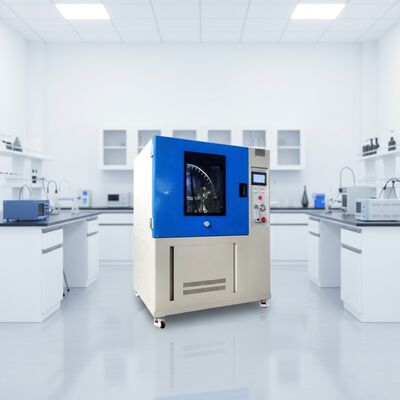

IPX1-4 Rain test Instrument (vertical Drip + Swing Pipe Rain) IEC 60529

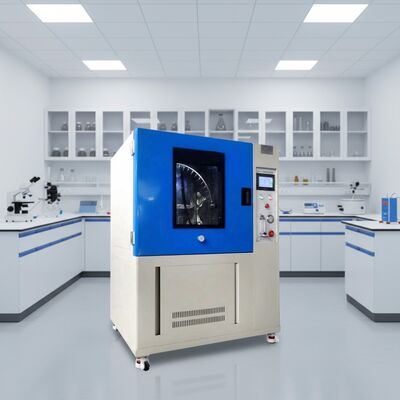

IPX1-4 Rain test Instrument (vertical Drip + Swing Pipe Rain) IEC 60529
