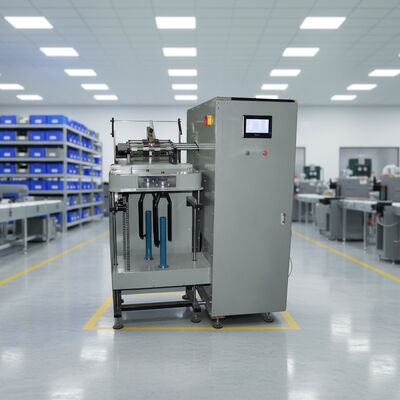

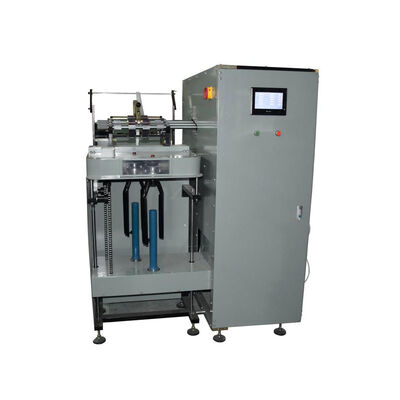

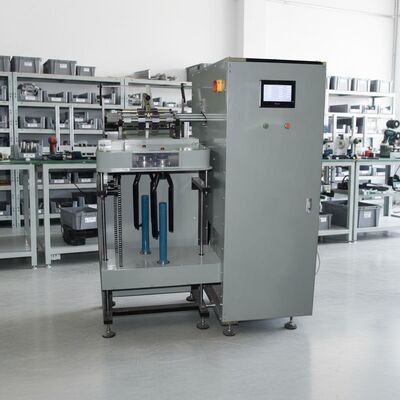

Touch Screen Roving Frame Sample Machine Spinning Series Sample Equipment Prototype Roving Machine

Large Image : Touch Screen Roving Frame Sample Machine Spinning Series Sample Equipment Prototype Roving Machine

Product Details:

Place of Origin:	Guangdong, China
Brand Name:	LONROY

Payment & Shipping Terms:

Minimum Order Quantity:	1

Contact Now

Touch Screen Roving Frame Sample Machine Spinning Series Sample Equipment Prototype Roving Machine

Description

Type:	Testing Machine	Accuracy Class:	High Accuracy
Accuracy:	----	Application:	Auto Testing, Laboratory Testing, Lab Testing
Customized Support:	OEM, ODM, OBM	Power:	2.3 KW
Protection Class:	Ip56	Voltage:	380 V
Warranty:	1 Year	Flyer Speed:	600 Rpm
Dimensions:	1.3 M * 1.0 M * 1.6 M	Power Supply:	220/3*380V AC 50/60Hz
Total Power:	2.3 KW
Highlight:	touch screen roving frame machine , spinning sample equipment prototype , textile testing roving machine

Touch Screen Roving Frame Sample Machine Spinning Series Sample Equipment Prototype Roving Machine

Product Description

Application

This equipment can spin sliver into roving through drafting and flyer spinning.

Features

This machine is one of the sample machines in the spinning series. It has a small footprint, simple operation and adjustment, and is suitable for rapid spinning tests with small amounts of raw materials. It is ideal for schools, research institutions, and R&D centers.

ITouch Screen Roving Frame Sample Machine Spinning Series Sample Equipment Prototype Roving Machine

Technical Specification

Control Method	Touch screen + PLC
Number of Spindles	2
Twist Range	Approx. 50-250 twists/m
Drafting Ratio	Approx. 2-50
Fiber Length	22 to 42 mm
Production Capacity	Approx. 2 kg
Flyer Speed	600 rpm
Roller Dimensions	Φ28/25/28 mm
Sliver Can Dimensions	Φ250*550 mm
Total Power	2.3 KW
Voltage	220/3*380V AC 50/60Hz
Dimensions	1.3 m * 1.0 m * 1.6 m
