Friction Spinning Machine Cotton Sliver Processing Equipment Cotton Roving Spinning Instrument

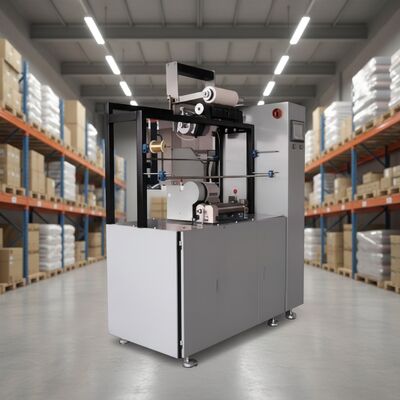

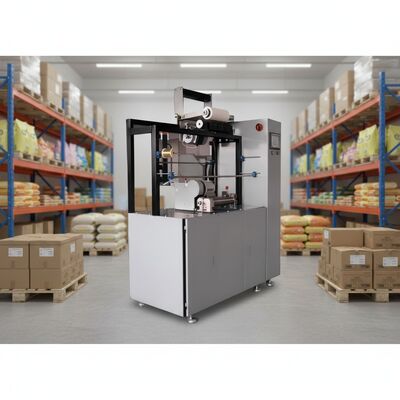

Large Image : Friction Spinning Machine Cotton Sliver Processing Equipment Cotton Roving Spinning Instrument

Product Details:

Place of Origin:	Guangdong, China
Brand Name:	LONROY

Payment & Shipping Terms:

Minimum Order Quantity:	1

Contact Now

Friction Spinning Machine Cotton Sliver Processing Equipment Cotton Roving Spinning Instrument

Description

Type:	Testing Machine	Accuracy Class:	High Accuracy
Accuracy:	----	Application:	Auto Testing, Laboratory Testing, Lab Testing
Customized Support:	OEM, ODM, OBM	Power:	1200 W
Protection Class:	Ip56	Voltage:	380 V, 220V Electrical Equipment
Warranty:	1 Year	Feeding Sliver Weight:	1-6 G/m
Dimensions:	1.4 M * 0.8 M * 1.8 M	Power Supply:	220/3*380V AC 50/60Hz
Total Power:	1200 W
Highlight:	cotton sliver spinning machine , friction spinning equipment textile , cotton roving processing instrument

Friction Spinning Machine Cotton Sliver Processing Equipment Cotton Roving Spinning Instrument

Product Description

Application Scope

Cotton sliver/roving is processed into single fibers by a combing roller. This equipment uses centrifugal airflow to transport the fibers to the friction roller twisting zone. A pair of perforated combing rollers rotate at high speed, and under negative pressure, spinning is performed through friction twisting.

Features

This machine is one of the small-scale sample machines in the spinning series. It has a small footprint, simple operation and adjustment, and is suitable for rapid spinning tests with small amounts of raw materials. It is ideal for use in schools, research institutions, and R&D centers.

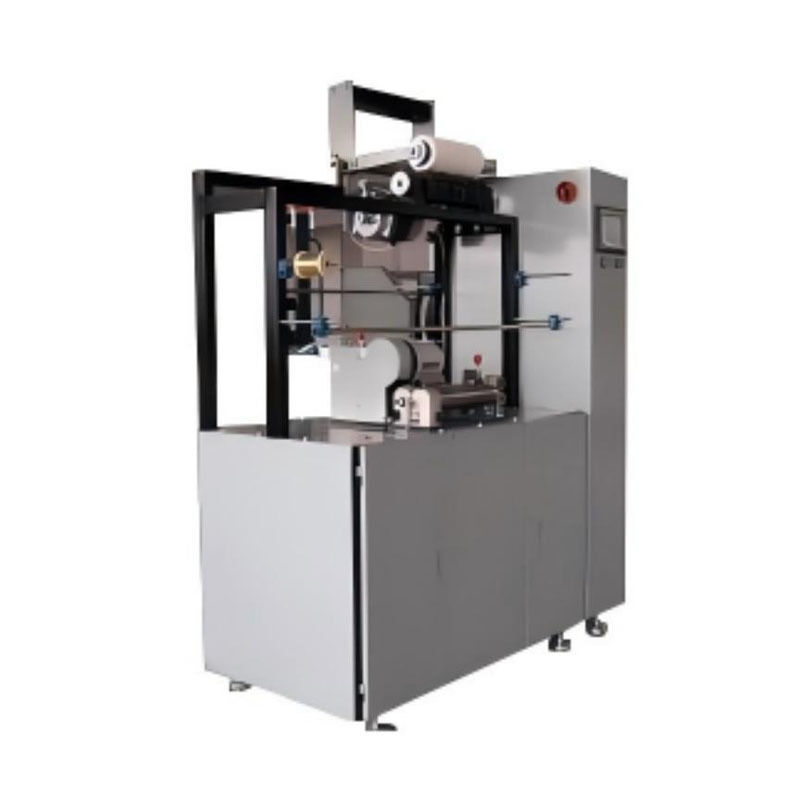

SFriction Spinning Machine Cotton Sliver Processing Equipment Cotton Roving Spinning Instrument

Technical Specification

Control Method	Touch screen + PLC
Number of Spindles	1
Suitable Fiber Length	20–60 mm
Feeding Speed	1–5.8 m/min
Combing Roller Speed	6000 rpm
Friction Roller Speed	4500 rpm
Output Speed	20–150 m/min
Suitable Yarn Count	1–20 Nm
Combing Roller Diameter	100 mm
Combing Roller Width	104 mm
Feeding Sliver Weight	1–6 g/m
Machine Power	1200 W
Voltage	220/3*380V AC 50/60Hz
Dimensions	1.4 m × 0.8 m × 1.8 m
