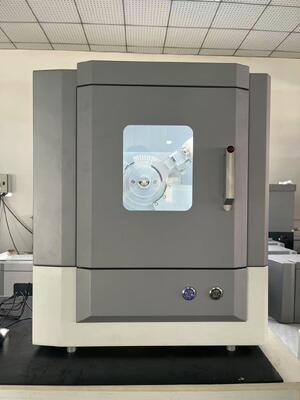

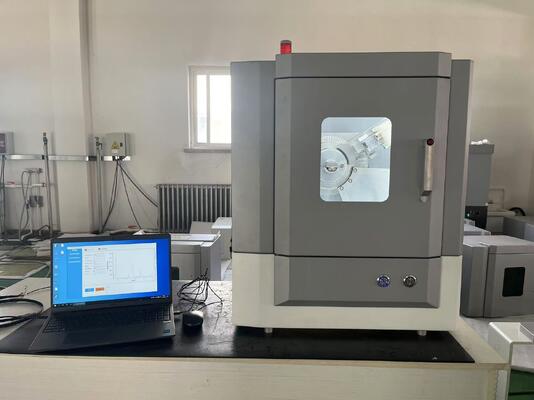

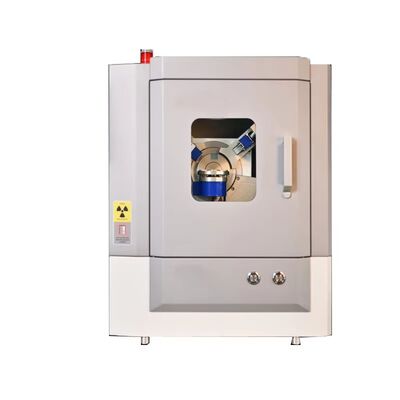

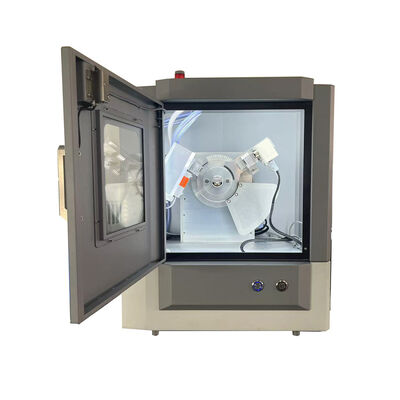

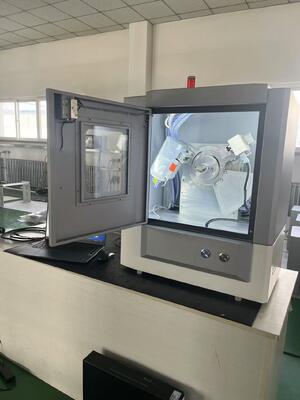

LR-8270 High Precision Benchtop Xrd Diffractometer Price XRD Machine X Ray Diffractometer Diffraction Analyzer
Description
Type:
FT-IR Spectrometer
Customized Support:
OEM, ODM, OBM
Warranty:
1year
Weight:
18kg
Product Name:
Xrd Diffractometer
Model:
LR-8270
Brand:
Lonroy
Voltage:
220V
Power:
-
Size:
450mm*350mm* 235mm
Focal Length:
-
Wavelength Range:
7800 ~ 350 Cm-1
Material:
Metal Exterior Paint
Highlight:
benchtop XRD diffractometer with warranty
,
high precision X-ray diffractometer
,
XRD machine diffraction analyzer
LR-8270 high precision benchtop Xrd Diffractometer price XRD Machine X Ray Diffractometer Diffraction Analyzer
Overview
LR-8270 mini benchtop X-ray diffractometer isa multipurpose powder diffraction analytical
instrument that specifically designed and developed for industrial production and quality control. LR-8270mini offers a lot - in a highly compact design, especially suitable for catalyst, titanium dioxide, cement, pharmaceutical and other product manufacturing industries.
Application
1.Phase identification in unknown samples ·
2.Quantitative analysis of known phases inmixed samples
3. Rievtveld analysis
Attachments
1.Graphite monochromator
2.DCX-6 Sample changer
3.In situ cell attachment
LR-8270 high precision benchtop Xrd Diffractometer price XRD Machine X Ray Diffractometer Diffraction Analyzer
Technical parameter
Power
Solid state X-ray generator: 600W(40kV, 15mA).
Reliability: <0.005%
X-ray tube
Cermet X-ray tube, Cu target, power: 2.4kW, focus: 1 x 10mm
Water cooling (water flowrate>2L/min)

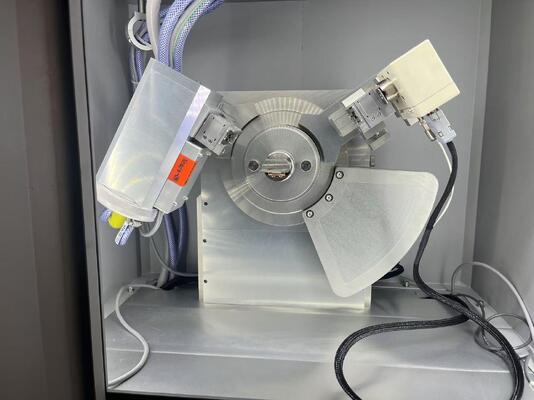

Goniometer
Sample horizontal θs-θd structure
Diffraction circle radius
150mm
Measurement range
-3 ~150°
Scan mode
Stepping, Omg
Minimum step width angle
0.0001°
Angle repeatability
0.0005°
Linearity of diffraction angle
<0.02° (Standard sample, within the full spectrum)
Detector
Closed proportional detector
Semiconductor array detector
Maximum linear count rate
5×105CPS
9×107CPS
Energy resolution
=25%
=1keV
Scatter dose
=1μSv/h (Outside the X-ray protective device)
Comprehensive stability
=0.5%
Dimensions
640×480×770 (W×D×H) mm
LR-8270 high precision benchtop Xrd Diffractometer price XRD Machine X Ray Diffractometer Diffraction Analyzer
Features
• High-frequency high-voltage X-ray generator does not only improve the stability of the instrument, but
also ensure the repeatability of the measured data.
• The goniometer θs and θd arms are driven by servo motor + optical coding control technology. The diffrac
tion angle linearity is less than 0.02° in the diffraction angle measurement range.
• Scattered ray protection is safer and more reliable; the radiation protection door is automatically prohibi
ted from opening when the sample is measured. In any case, operators can be protected from scattered
radiation.
• Configure the most advanced metal ceramic X ray tube, to ensure long service life.
• Compact size can be mounted on the bench without the need for a specific laboratory environment. Simple to use, operate and maintain.
