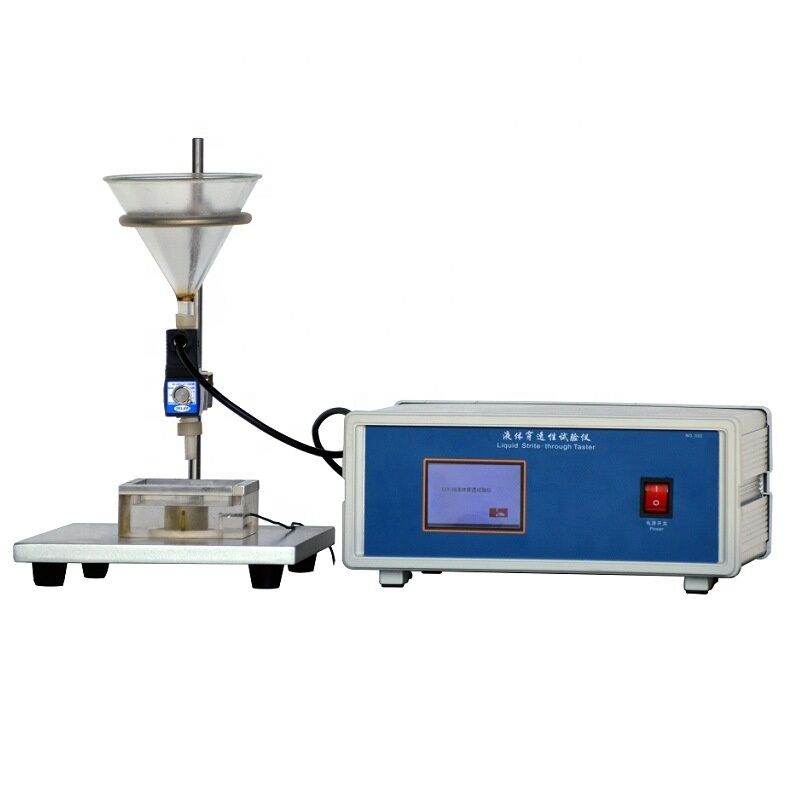

FZ/T 60017 Liquid Penetration Tester, Penetration test Machine for Liquid Textile Testing Machine

FZ/T 60017 Liquid penetration tester, Penetration test machine for liquid

Introduction:

Application scope of the instrument:The instrument is suitable for the penetration test of thin nonwovens such as women's sanitary napkins and diaper covering materials.

Working principle of the instrument:A certain amount of artificial urine is poured into a nonwovens sample laid on a standard absorbent pad in a prescribed way, and the time required for all the liquid to pass through the nonwovens sample is measured by electrometry.

FZ/T 60017 Liquid penetration tester, Penetration test machine for liquid

Applicable standards:

FZ/T 60017 Test method for liquid penetration of thin nonwovens for sanitary use;

GB/T 24218.8 Textile nonwovens - Test methods - Part 8: Determination of liquid penetration time (simulated urine);

GB/T 24218.13 Textile nonwovens - Test methods - Part 13: Determination of liquid multiple penetration time;

GB/T 24218.14 Textile nonwovens -- Test methods -- Part 14: Determination of reverse moisture content of clad materials.

FZ/T 60017 Liquid penetration tester, Penetration test machine for liquid

Technical parameters:
