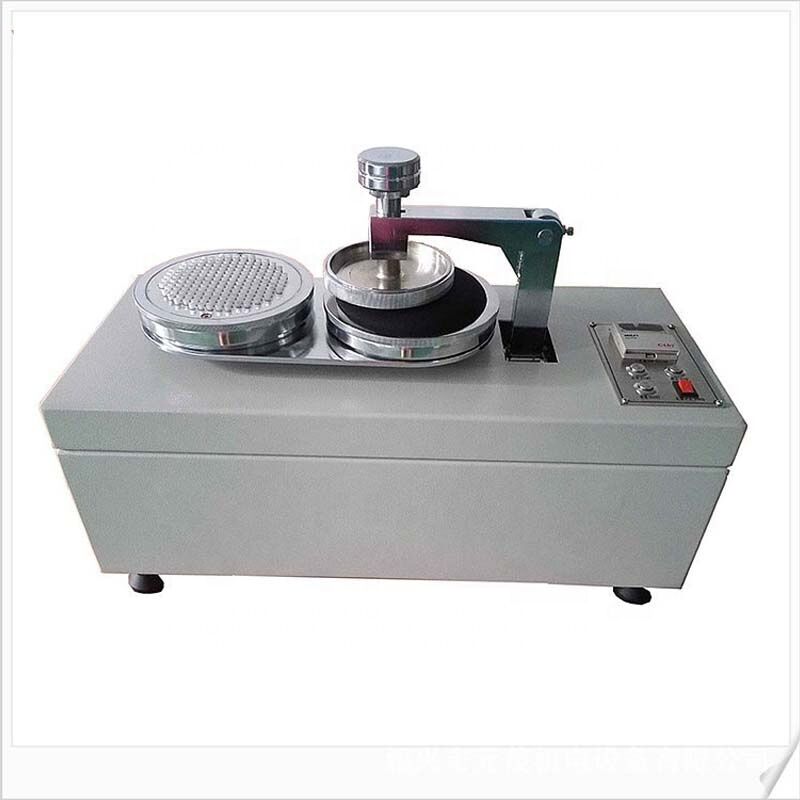

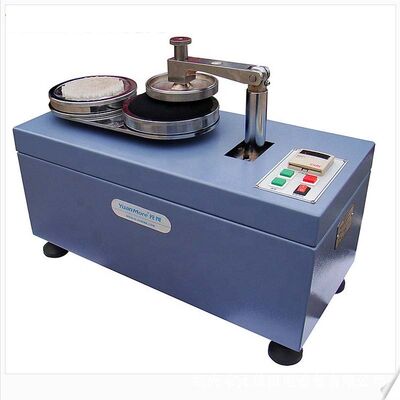

DIN538863 JISL1076 Fabric Pilling Apparatus, Textile Pilling Apparatus

DIN538863 JISL1076 Fabric pilling apparatus, Textile pilling apparatus

 Main features:

The circular trajectory method tests the fuzz and pilling resistance of various fabrics.
A digital counter is used to control two sets of sinusoidal mechanism, so that the sample and the grinding table form a compass track relative motion at a certain speed. Nylon brush and abrasives or single abrasives are used to make chemical fiber knitted fabrics, chemical fiber woven fabrics, worsted blends, worsted fabrics, coarse wool fabrics and other fabrics friction pilling and pilling, and the pilling sample is rated according to the pilling sample.Can be set times, automatic counting, Hall element acquisition times signal, LED display data.The machine adopts linear guide rail as sliding unit, smooth operation, low noise, good consistency!

DIN538863 JISL1076 Fabric pilling apparatus, Textile pilling apparatus

Technical parameter:

DIN538863 JISL1076 Fabric pilling apparatus, Textile pilling apparatus

The choice of weights:

The machine is equipped with two weights of different weights, which are 100cN and 290cN respectively. Users can choose different weights according to different experimental requirements. When the weights need to be replaced, please hold the weights and rotate counterclockwise to remove the weights.
Three weight: 490cN no weight;
                       590cN put 100cN weight;
                       780cN with 290cN weight
