DIN 3415 ISO 22776 22777 Adhesive Hook Fatigue Tester Hooked Tape Fatigue Strength Testing Machine

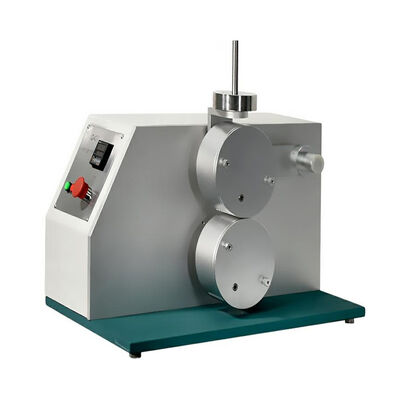

Large Image : DIN 3415 ISO 22776 22777 Adhesive Hook Fatigue Tester Hooked Tape Fatigue Strength Testing Machine

Product Details:

Place of Origin:	Guangdong, China
Brand Name:	LONROY

Payment & Shipping Terms:

Minimum Order Quantity:	1

Contact Now

DIN 3415 ISO 22776 22777 Adhesive Hook Fatigue Tester Hooked Tape Fatigue Strength Testing Machine

Description

Type:	Testing Machine	Accuracy:	---
Application:	Auto Testing, Laboratory Testing, Lab Testing	Customized Support:	OEM, ODM, OBM
Power:	----	Protection Class:	Ip56
Voltage:	220 V	Warranty:	1 Year
Logo/graphic Design:	Hot Stamping	Wheel Width:	70mm
Counter:	LCD Liquid Crystal Display, 0-999,999	Test Load:	5kg
Rolling Speed:	60 Rpm/min
Highlight:	DIN 3415 adhesive hook fatigue tester , ISO 22776 hooked tape testing machine , textile fatigue strength tester with warranty

DIN 3415 ISO 22776 22777 Adhesive Hook Fatigue Tester Hooked Tape Fatigue Strength Testing Machine

Product Description

Introduction

The Adhesive Hook Fatigue Tester / Hooked Tape Fatigue Strength Testing Machine is used to test the adhesion ability of the hooked tape (velcro tape) after repeated peeling and adhering actions, and to evaluate whether it meets the standard requirements.

Applicable standards

DIN-3415, GB/T 3903.20, GB/T 3903.21, GB/T 23315, ISO 22777, ISO 22776, SATRA PM123

Test principle

The hooked tape fatigue tester / hooked tape fatigue strength testing machine performs repeated peeling and adhering actions on the testing machine. After a certain number of repetitions, the test piece is pressed evenly by the weight of the roller, and then combined with the tensile testing machine to measure its adhesion force (AS) and adhesion strength (PA).

DIN 3415 ISO 22776 22777 Adhesive Hook Fatigue Tester Hooked Tape Fatigue Strength Testing Machine

Technical Specification

Wheel diameter	Upper wheel φ162.5mm, Lower wheel φ160mm
Wheel width	70mm
Rolling speed	60 rpm/min
Reverse time	30 seconds reverse
Test load	5kg
Fixture groove	Width 4mm, Length 55 ± 2mm
Horsepower	AC1/8HP dual-frequency motor
Counter	LCD liquid crystal display, 0-999,999
