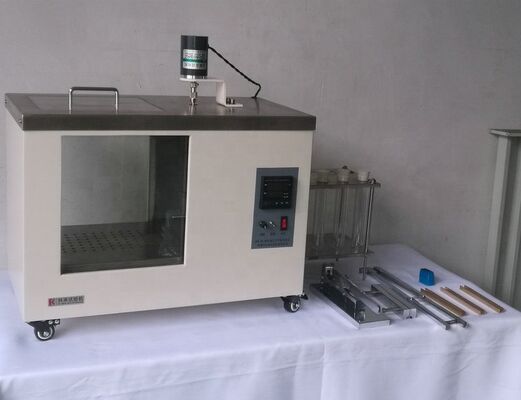

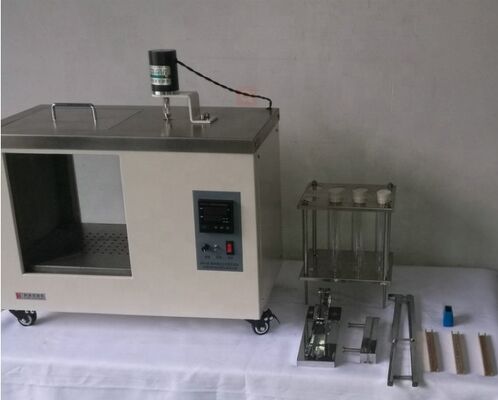

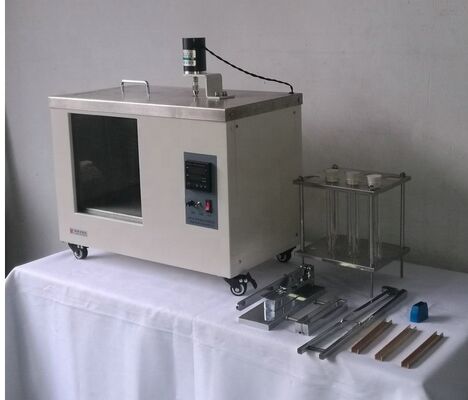

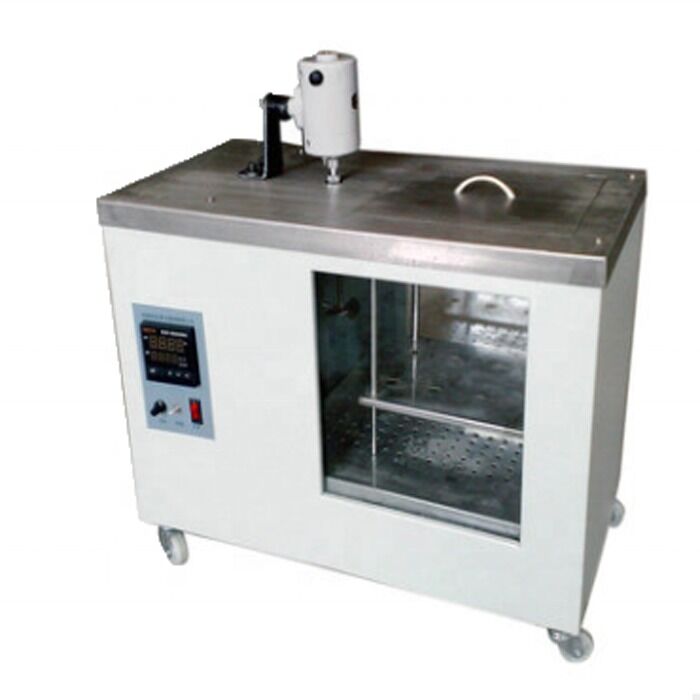

ASTM D1693 Plastics Environmental Stress Cracking Tester

Adjustable temperature range

room temperature -100℃

Temperature control accuracy

±0.5℃

Blade length

19mm

Blade height

3mm

Blade thickness

0.24mm

Notch depth

0.3-0.65mm

Sample specifications

 length: 38±2.5mm, width: 13±0.8mm, height: 1.75-3.00mm

Specimen retainer width

12±0.05mm, 11.75±0.05mm (optional)

Tank size

420*305*375mm (length * width * height)

Overall dimension

605*330*610mm (length * width * height)

thermal medium

pure water

Ambient temperature

10-40℃

Power supply

220V 50Hz

Heating power

3KW

Serial Number

Name

Units

Quantity

Remark

1

Thermostatic Bath

PCS

1

2

Test Tube Stand

PCS

          1

8 station, expandable

3

Nick Device

PCS

1

4

Test Tube

PCS

3

5

Cutting Tool For Processing Sample

PCS

1

38* 13mm

6

Sample Retainer

PCS

3

1. There are two options for the width of the inner slot: 12+ -- 0.05mm;11.75 + 0.05 mm

2. A maximum of 10 samples can be placed in each sample cage

7

Sample Bending Device

PCS

1

8

Sample Transfer Tool

PCS

1

9

Blade

PCS

         3

10

Specification

PCS

1

11

Packing List

PCS

1

12

Certificate

PCS

1
