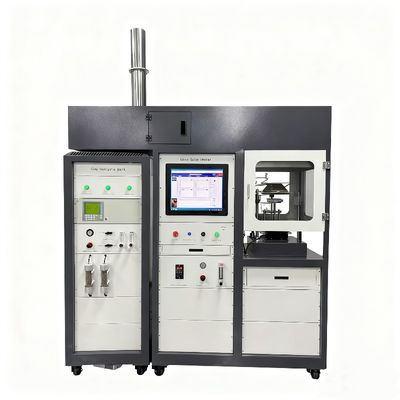

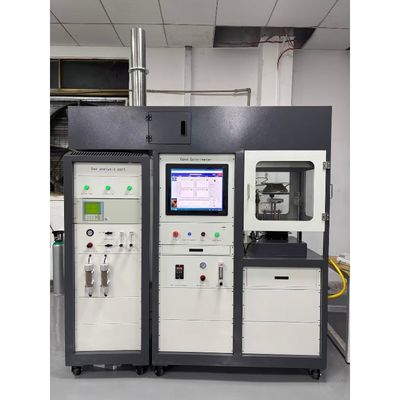

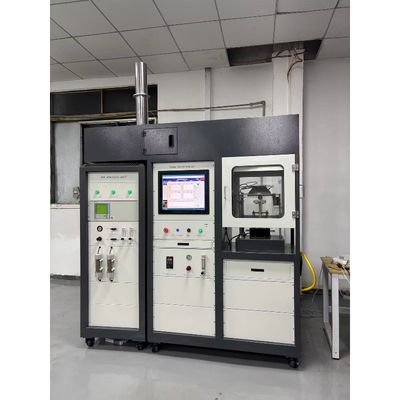

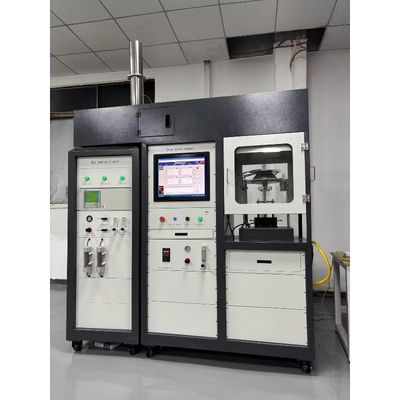

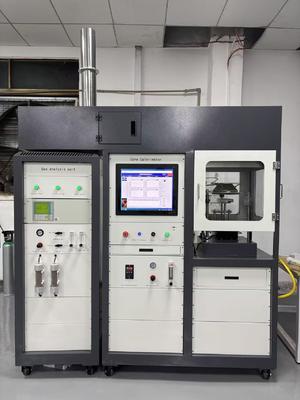

ISO 5660 ASTM E1354 Cone Calorimeter BS 476 Cone Calorimetry Tester Analysis Instrument

Large Image : ISO 5660 ASTM E1354 Cone Calorimeter BS 476 Cone Calorimetry Tester Analysis Instrument

Product Details:

Place of Origin:	Guangdong, China
Brand Name:	LONROY

Payment & Shipping Terms:

Minimum Order Quantity:	1
Price:	$28,500

Contact Now

ISO 5660 ASTM E1354 Cone Calorimeter BS 476 Cone Calorimetry Tester Analysis Instrument

Description

Voltage:	110 V, 220 V	Protection Class:	Ip56
Repeatability:	< ±1%	Zero Shift:	≤2%/ Week
Concentration Range:	0 ~ 25%	Signal Output:	4-20mA; RS485
Oxygen Measurement Accuracy:	<0.02%	Response Time:	T90≤3.5S
Linearity:	<±0.1% Oxygen	Zero Drift:	≤50 X 10 Within 30 Minutes
Internal Signal Processing Time:	<1S	Resolution:	100×10
Ambient Temperature:	0-45 °C	Relative Humidity:	<90% (no Condensation)
CO2 Measurement Range:	0 ~ 10%
Highlight:	ISO 5660 cone calorimeter tester , ASTM E1354 cone calorimetry instrument , BS 476 lab test machine

ISO 5660 ASTM E1354 Cone Calorimeter BS 476 Cone Calorimetry Tester Analysis Instrument

This advanced cone calorimeter is designed based on the oxygen consumption principle, calculating heat release rate from oxygen concentration in combustion product gas streams. It provides accurate measurement of material heat release rates during combustion, essential for predicting fire hazards and evaluating flame retardant treatments.

Compliance Standards

Complies with GB/T16172-2007, ISO 5660-1:2002, ASTM E1354, BS 476 PT.15, and NFPA 264 standards.

Applications

Used for testing smoke production, mass loss rate, gas concentrations (O₂, CO, CO₂), and heat release rate of fire-resistant and flame-retardant materials under various conditions. Ideal for quality inspection units and research institutions analyzing material combustion properties.

Key Features

Modular cabinet design with movable analysis cabinet
Integrated test body with high-performance PC and 19-inch LCD control panel
Professional Labview software with automated, user-friendly interface
Comprehensive sensor calibration modes for optimal measurement accuracy
Status check interface for real-time monitoring of all sensor components
Advanced data collection and reporting capabilities in EXCEL format
Multi-curve comparison function for material combustion characteristics analysis

System Components

Combustion Chamber: 1680×700×2410mm with conical heater, igniter, and windshield
Oxygen Analyzer: Siemens paramagnetic analyzer for precise oxygen measurement
Load Platform: Accurately records sample mass changes during combustion
Smoke Measurement: He-Ne laser system for specific extinction area determination
Ventilation System: Removes combustion products from chamber to atmosphere
Auxiliary Equipment: Includes microcomputer processor, server, and gas removal devices

Radiation Cone

Radiation Shielding Layer

Technical Specifications

Component	Specifications
Oxygen Measurement	Siemens paramagnetic analyzer Range: 0-25% \| Accuracy: <0.02% Response time: T90≤3.5S \| Output: 4-20mA; RS485
CO₂ Analyzer	NDIR non-dispersive infrared analyzer Range: 0-10% \| Accuracy: ±0.1% Response time: <3.5S \| Repeatability: <±1%
CO Analyzer	Non-dispersive infrared analyzer Range: 0-1% \| Accuracy: ±0.1% Response time: <3.5S \| Repeatability: <±1%
Smoke Density Analysis	0.5mW He-Ne laser system with photodiode detectors Halogen lamp light source (6V, 10W) Optical system maintains >95% light transmittance

Weighing Equipment

Positioning Rack
