IEC 60068 6 Grade Spring Impact Hammer Electrical Spring Actuated Impact Hammer Factory Price

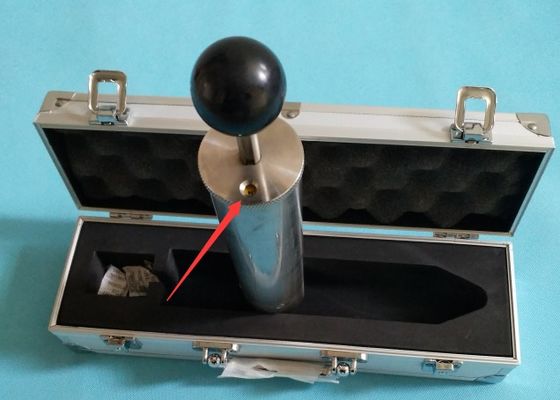

Large Image : IEC 60068 6 Grade Spring Impact Hammer Electrical Spring Actuated Impact Hammer Factory Price

Product Details:

Place of Origin:	China
Brand Name:	Lonroy
Certification:	ISO ASTM CE

Payment & Shipping Terms:

Minimum Order Quantity:	1
Price:	Negotaible
Packaging Details:	Wooden package
Delivery Time:	5-8 work days
Payment Terms:	L/C,D/A,D/P,T/T,Western Union
Supply Ability:	200

Contact Now

IEC 60068 6 Grade Spring Impact Hammer Electrical Spring Actuated Impact Hammer Factory Price

Description

Type:	Testing Machine	Protection Class:	IP66
Voltage:	220 V	Weight:	1250 G
Hammer Head Radius:	10mm	Length:	211 Mm
Outside Diameter:	50 Mm	Hammer Head Weight:	60g
Impact Components Weight:	250g	Hammer Head Material:	White Polypreimine
Impact Release Force:	Less Than 10N	Impact Energy 0.14J:	±0.014J
Impact Energy 0.20J:	±0.020J	Impact Energy 0.35J:	±0.03J
Impact Energy 0.50J:	±0.04J
Highlight:	IEC 60068 spring impact hammer , electrical spring actuated hammer , grade 6 impact hammer small meter

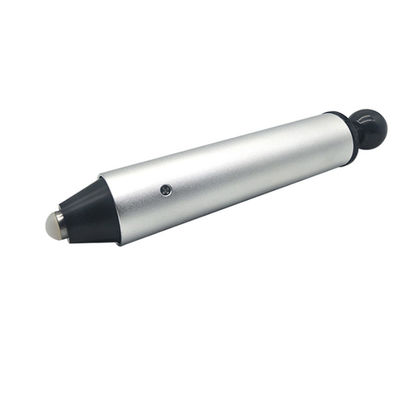

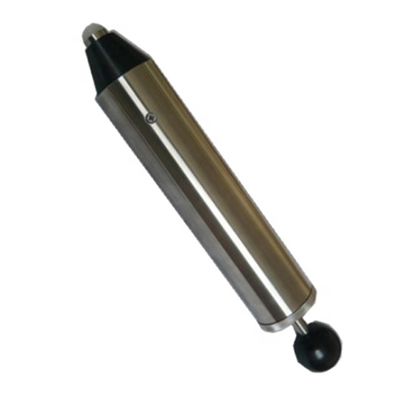

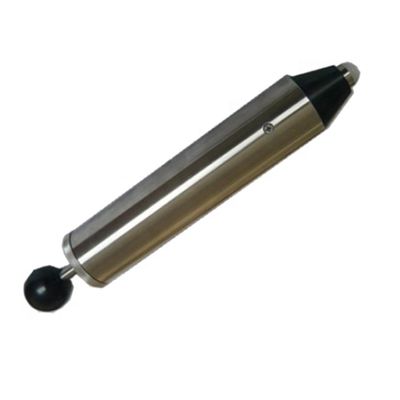

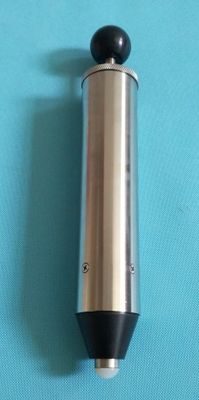

IEC 60068 6 Grade Spring Impact Hammer

This electrical spring-actuated impact hammer is manufactured according to GB/T2423.44, GB/T2423.55, GB4706, GB4943, GB8898, GB7000, IEC60068, and related standards. It is designed for testing the impact resistance of household and similar electronic/electrical equipment, including device shells, operating levers, handles, knobs, and indicators, to assess product safety and strength grade.

Basic Structure and Working Principle

1. Three Main Components

Shell: Includes housing, shock element guide, release mechanism, and fixed parts
Impact Components: Consists of hammer head, hammer rod, and hitting ball handle
Release Cone: Mechanism for controlled energy release

2. Operation Principle

The spring mechanism generates standardized energy through controlled movement of weighted elements and hammer head compression. When the handle is pulled, the release jaw engages the shock element at the calibrated release point. The compressed spring releases precisely calibrated energy levels, which are factory-set using energy calibration devices.

Technical Specifications

Parameter	Value
Length	211 mm
Weight	1250 g
Outside Diameter	50 mm
Hammer Head Weight	60 g
Hammer Head Radius	10 mm
Impact Components Weight	250 g (including ball handle and hammer head)
Hammer Head Material	White polypreimine
Impact Release Force	< 10N

Impact Energy Calibration

Energy	Error Range
0.14J	±0.014J
0.20J	±0.020J
0.35J	±0.03J
0.50J	±0.04J
0.70J	±0.05J
1.00J	±0.05J
