300A5V 8L Lithium Battery Test Machine with Precision ±0.1%FS for Direct Current Internal Resistance Testing

Large Image : 300A5V 8L Lithium Battery Test Machine with Precision ±0.1%FS for Direct Current Internal Resistance Testing

Product Details:

Place of Origin:	Guangdong, China
Brand Name:	LONROY

Payment & Shipping Terms:

Minimum Order Quantity:	1

Contact Now

300A5V 8L Lithium Battery Test Machine with Precision ±0.1%FS for Direct Current Internal Resistance Testing

Description

Voltage:	220 V, 380 V	Protection Class:	IP56
Precision:	± 0.1%FS Or ±0.5%	Stability:	±0.2%FS
Stage Time Range:	0.1 Second - 1000 Hours	Work Temperature:	0℃ To 40℃
Charging Method:	Automatically	Display Mode:	Touch Screen Display Or Upper Computer Display
Resolution:	16-bit AD	Timing Accuracy:	±10 Seconds/24 Hours
Stage Setting Range:	1 - 200 Stages	Data Recording Interval:	≥100ms
Storage Temperature:	-20℃ To +70℃	Cooling Method:	Air-cooled
Environmental Humidity:	≤85%
Highlight:	300A5V Lithium Battery Test Machine , 8L Battery Testing Equipment , Precision ±0.1%FS DCIR Test Machine

Lithium Battery Integrated Parameter AutoTesting Equipment 300A5V 8L Direct Current Internal Resistance Test Machine

Advanced Battery Testing Solution

This professional battery testing equipment performs comprehensive charging/discharging tests, pulse tests, DCIR (direct current internal resistance) tests, cycle life tests, and rate charging/discharging tests for single batteries and modules. Ideal for electric vehicles, electric bicycles, energy storage batteries, and more.

Key Applications

Designed for research institutions, universities, power battery manufacturers, and new energy vehicle manufacturers.

Key Features

Multiple working modes: Constant voltage/current/power charging, constant current/power/resistance discharging, resting, and cyclic operation (custom modes available)
Advanced safety protections: Battery reverse connection alarm, overcurrent shutdown, pause function, and automatic test termination for abnormal conditions
Professional software: Export test data to Excel with customizable columns, maintaining original record formats
Built-in calibration: Voltage and current calibration correction function ensures measurement accuracy
Power failure recovery: Records operating status during power outages and automatically resumes operation

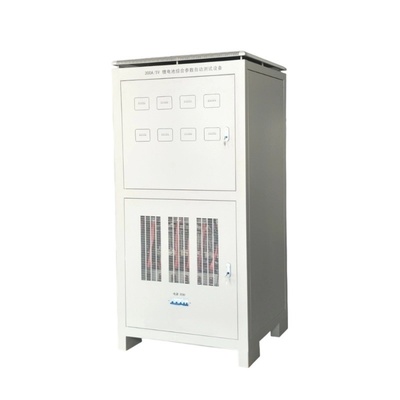

Main unit of the testing equipment

Professional software interface

Technical Specifications

Parameter	Specification
Output Channels	Customizable number of channels
Charging Method	Automatic
Display Mode	Touch screen or computer display
Voltage	Scope: Customizable charging/discharging ranges Precision: ±0.1%FS or ±0.5% Resolution: 16-bit AD
Current	Range: 0-*A (customizable charging/discharging ranges) Precision: ±0.1%FS or ±0.5% Resolution: 16-bit AD
Power	Total output: Determined by equipment specifications Single channel: Determined by equipment specifications Stability: ±0.2%FS
Time	Resolution: 0.1 second Accuracy: ±10 seconds/24 hours Stage time setting: 0.1s - 1000 hours Stage setting: 1-200 stages
Data Recording	Time interval: ≥100ms Voltage variation: ≥0.1%FS Current variation: ≥0.1%FS
Work Environment	Power supply: AC380V (-5% to +10%) or AC220V (-5% to +10%) Temperature: 0℃ to 40℃ (storage -20℃ to +70℃) Humidity: ≤85% Ventilation: Good ventilation required Cooling: Air-cooled
PC Requirements	Windows 7, Windows 10 or above
