ISO 11058 ASTM D4716 Geotextile Permeability Tester with 220V Power Supply and 50 ± 0.5 mm Holder Diameter for 20 mm Sample Thickness

Large Image : ISO 11058 ASTM D4716 Geotextile Permeability Tester with 220V Power Supply and 50 ± 0.5 mm Holder Diameter for 20 mm Sample Thickness

Product Details:

Place of Origin:	China
Brand Name:	Lonroy
Certification:	ISO ASTM CE

Payment & Shipping Terms:

Minimum Order Quantity:	1
Price:	Negotaible
Packaging Details:	Wooden package
Delivery Time:	5-8 work days
Payment Terms:	L/C,D/A,D/P,T/T,Western Union
Supply Ability:	200

Contact Now

ISO 11058 ASTM D4716 Geotextile Permeability Tester with 220V Power Supply and 50 ± 0.5 mm Holder Diameter for 20 mm Sample Thickness

Description

Inner Diameter:	50 ± 0.5 Mm	Sample Thickness:	20 Mm
Power Supply:	AC 220V ± 10% 50Hz	Dimensions:	400 × 500 × 850 Mm
Protection Class:	IP56	Max Water Head:	250 MmH2O
Time Control Range:	0 To 99.9 Seconds	Time Accuracy:	0.1 Seconds
Graduated Cylinder:	1000 Ml	Measurement Accuracy:	10 Ml
Water Level Indicator:	1 Mm Division	Temperature Range:	0 - 60℃
Temperature Accuracy:	0.1℃	Sensor Type:	Electronic Temperature Sensor
Voltage:	220 V
Highlight:	220V Power Supply Geotextile Permeability Tester , 50 ± 0.5 mm Holder Diameter Vertical Permeability Coefficient Testing Machine , 20 mm Sample Thickness Geotextiles Testing Machine

ISO 11058 ASTM D4716 Geotextile Permeability Tester

Geotextiles Vertical Permeability Coefficient Testing Machine

This professional testing equipment measures the vertical permeability coefficient and permeability rate of geotextiles and composite materials under controlled conditions of no-load, constant water head, and laminar flow.

Scope of Application

Designed for the water conservancy industry and compliant with national standards, this tester is essential for quality control and research applications involving geotextile materials.

Relevant Standards

SL/T235-2012, GB/T15789, ISO11058, ASTM D4716

Technical Specifications

Parameter	Specification
Maximum water head pressure difference	250 mmH2O
Inner diameter of the holder	50 ± 0.5 mm
Applicable sample thickness	20 mm
Time controller	0-99.9 seconds (accuracy: 0.1 seconds)
Graduated cylinder	1000 ml (accuracy: 10 ml)
Water level indicator	Division value: 1 mm
Temperature range & sensor	0-60℃ (accuracy: 0.1℃), Electronic sensor
Power supply	AC 220V ± 10% 50Hz
Dimensions	400 × 500 × 850 mm

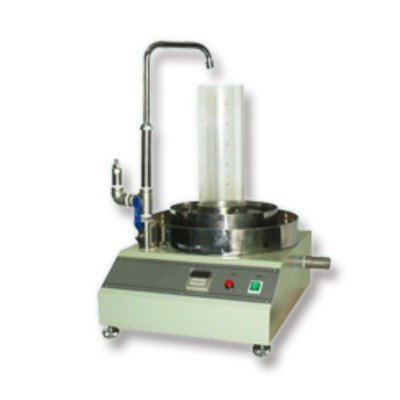

Geotextile Permeability Tester - Front View

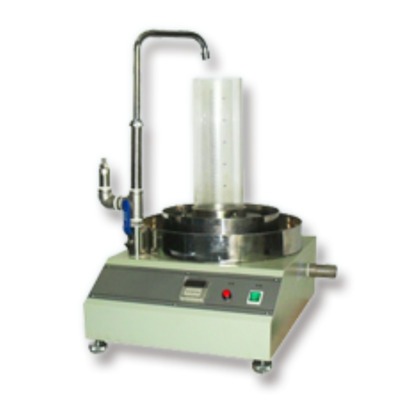

Geotextile Permeability Tester - Side View
