ASTM D4751 Compliant Geotextile Sieve Rate Test Equipment with IP56 Protection and 220V Power Supply

ASTM D4751 Compliant Geotextile Sieve Rate Test Equipment with IP56 Protection and 220V Power Supply
ASTM D4751 Compliant Geotextile Sieve Rate Test Equipment with IP56 Protection and 220V Power Supply ASTM D4751 Compliant Geotextile Sieve Rate Test Equipment with IP56 Protection and 220V Power Supply ASTM D4751 Compliant Geotextile Sieve Rate Test Equipment with IP56 Protection and 220V Power Supply ASTM D4751 Compliant Geotextile Sieve Rate Test Equipment with IP56 Protection and 220V Power Supply ASTM D4751 Compliant Geotextile Sieve Rate Test Equipment with IP56 Protection and 220V Power Supply ASTM D4751 Compliant Geotextile Sieve Rate Test Equipment with IP56 Protection and 220V Power Supply

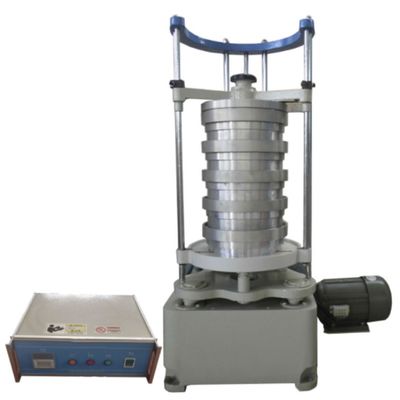

Large Image :  ASTM D4751 Compliant Geotextile Sieve Rate Test Equipment with IP56 Protection and 220V Power Supply

Product Details:
Place of Origin: China
Brand Name: Lonroy
Certification: ISO ASTM CE
Payment & Shipping Terms:
Minimum Order Quantity: 1
Price: Negotaible
Packaging Details: Wooden package
Delivery Time: 5-8 work days
Payment Terms: L/C,D/A,D/P,T/T,Western Union
Supply Ability: 200
Contact Now

ASTM D4751 Compliant Geotextile Sieve Rate Test Equipment with IP56 Protection and 220V Power Supply

Description
Voltage: 220 V Protection Class: Ip56
Test Size: 147/min Impact Frequency: 147/min
Stacked Sieve Trays: 400mm Inner Diameter: 200mm
Screen Amplitude: 8mm Shaking Frequency: 221/min
Mainframe Dimensions: 600 × 380 × 1000 Mm Control Box Dimensions: 330 × 290 × 105 Mm
Weight: 130kg Vibration Modes: Shaking, Impacting
Sieve Diameter: 200mm Parallel Sieves: 5 Sets
Vibration Frequency: Stable
Highlight:

ASTM D4751 Compliant Geotextile Sieve Rate Test Equipment

,

IP56 Protection Geotextile Sieve Rate Test Equipment

,

220V Power Supply Geotextile Sieve Rate Test Equipment

ASTM D4751 Geotextiles Dry Sieving Method Effective Aperture Determination Machine
Product Description

The effective aperture measuring instrument for geotextiles (dry sieving method) uses the dry sieving method to determine the equivalent aperture of geotextiles and related products. Using a geotextile sample as the sieve cloth, this equipment places known diameter standard particle materials on the geotextile and vibrates the sieve to calculate the sieve rate and determine aperture distribution.

Compliant Standards

GB/T 14799-2005, ASTM D4751-2004, JTG E50 T1144-2006, SL/T 235-7-2012

Key Features
  • Split design protects control system from vibration damage during high-speed operation
  • Mechanical vibration screen operates smoothly and efficiently
  • Two vibration modes available: shaking and impacting with stable frequency
  • Locking protection device enhances body stability
  • Anti-static device prevents glass bead accumulation
  • Five parallel sieve tests for energy efficiency
  • Digital time display with adjustable vibration time
  • Easy installation and simple operation
Technical Specifications
Inner diameter of the sieve 200mm (in diameter)
Stacked sieve trays 400mm
Screen seat amplitude 8mm
Shaking frequency 221/min
Impact frequency 147/min
Dimensions Mainframe: 600 × 380 × 1000 mm
Control box: 330 × 290 × 105 mm
Weight 130kg
ASTM D4751 Compliant Geotextile Sieve Rate Test Equipment with IP56 Protection and 220V Power Supply 0
ASTM D4751 Compliant Geotextile Sieve Rate Test Equipment with IP56 Protection and 220V Power Supply 1
