ISO 12956 Compliant Geotextile Effective Porosity Measuring Instrument with 50Hz Vibration Frequency and 300KPa Nozzle Pressure

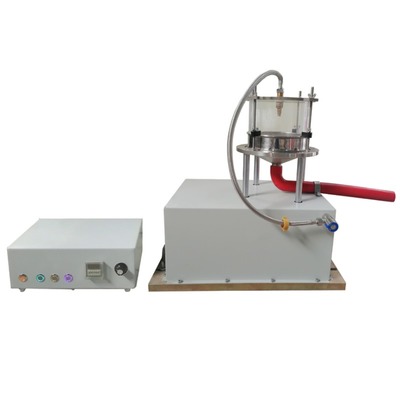

Large Image : ISO 12956 Compliant Geotextile Effective Porosity Measuring Instrument with 50Hz Vibration Frequency and 300KPa Nozzle Pressure

Product Details:

Place of Origin:	China
Brand Name:	Lonroy
Certification:	ISO ASTM CE

Payment & Shipping Terms:

Minimum Order Quantity:	1
Price:	Negotaible
Packaging Details:	Wooden package
Delivery Time:	5-8 work days
Payment Terms:	L/C,D/A,D/P,T/T,Western Union
Supply Ability:	200

Contact Now

ISO 12956 Compliant Geotextile Effective Porosity Measuring Instrument with 50Hz Vibration Frequency and 300KPa Nozzle Pressure

Description

Voltage:	220 V	Vibration Frequency:	50Hz
Nozzle Pressure:	300KPa	Grid Aperture Size:	10±1mm
Timing Range:	0 - 99 Hours (adjustable)	Protection Class:	Ip56
Sieve Inner Diameter:	Φ190mm	Vertical Amplitude:	1.5 Millimeters
Water Output:	500ml/min	Vibration Amplitude:	Adjustable
Sample Diameter:	Φ190mm	Vibration Method:	Mechanical Vibration
Sample Placement:	Metal Mesh	Control Interface:	Aviation Plugs
Protective Cover:	Fully Transparent
Highlight:	ISO 12956 Compliant Geotextile Effective Porosity Measuring Instrument , 50Hz Vibration Frequency Geotextile Effective Pore Size Tester , 300KPa Nozzle Pressure Wet Sieving Method Geotextile Tester

ISO 12956 Wet Sieving Method Geotextile Effective Porosity Measuring Instrument

The Geotextile Effective Porosity Measuring Instrument (Wet Sieving Method) determines the equivalent porosity of geotextiles and related products using the wet sieving method. This instrument uses unstretched geotextile samples as sieve mesh, with specified vibration frequency and amplitude, while water is sprayed onto samples and graded particle materials to allow particles to pass through. The specific particle size of passed materials represents the sample's effective porosity.

Key Features

Designed for determining effective pore diameters of various geotextiles
Split design prevents vibration damage to control system during high-speed operation
Components connected by aviation plugs for easy installation and removal
Mechanical vibration screen operates smoothly and efficiently
Fully transparent protective cover allows observation of experiments
Samples placed on metal mesh to prevent excessive deformation
Adjustable vibration time with digital display
Amplitude controlled by simple knob adjustment
Convenient and easy to operate

Compliance Standards

GB/T 17634-2019, ISO/FDIS 12956-1998

Technical Specifications

Parameter	Specification
Inner diameter of the sieve	Φ190mm
Vibration frequency	50Hz
Vertical amplitude	1.5 millimeters
Nozzle pressure	300KPa
Water output under work pressure	500ml/min
Grid aperture size	10±1mm
Timing range	0 - 99 hours (adjustable)

ISO 12956 Wet Sieving Method Geotextile Effective Porosity Measuring Instrument

ISO 12956 Wet Sieving Method Geotextile Effective Porosity Measuring Instrument
