ISO 9863 Compliant Computer Controlled Geosynthetic Thickness Tester with 0.001mm Resolution and 220V Power Supply

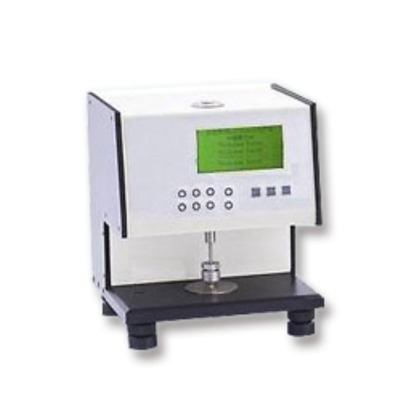

Large Image : ISO 9863 Compliant Computer Controlled Geosynthetic Thickness Tester with 0.001mm Resolution and 220V Power Supply

Product Details:

Place of Origin:	Guangdong, China
Brand Name:	LONROY

Payment & Shipping Terms:

Minimum Order Quantity:	1

Contact Now

ISO 9863 Compliant Computer Controlled Geosynthetic Thickness Tester with 0.001mm Resolution and 220V Power Supply

Description

Power:	100W	Protection Class:	IP56
Voltage:	220 V	Resolution:	0.001mm
Power Supply:	AC220V ± 10%	Dimensions:	600mm * 550mm * 450mm
Foot Pressure Area:	25cm (circular Diameter: 56.42mm)	Stabilization Time:	10S, 20S, 30S, 40S, 50S
Test Pressure:	2 ± 0.01KPa; 20 ± 0.1KPa; 200 ± 0.1KPa	Test Thickness:	0 - 25mm
Measurement Method:	Single-point Measurement And Multi-point Measurement
Highlight:	ISO 9863 Compliant Geosynthetic Thickness Tester , 0.001mm Resolution Geotextile Thickness Tester , 220V Power Supply Thickness Measuring Meter

ISO 9863 Computer Controlled Geosynthetic Materials Thickness Measuring Meter Equipment

The Geotextile Thickness Tester is designed for precise measurement of geosynthetic materials and related products under various pressures and specified time periods.

Scope of Application

Measures thickness of geosynthetic materials under different pressures
Accurate measurements within specified time periods

Conforming to Standards

JTG E50
ISO 9863
GB/T 13761

Technical Specifications

Parameter	Specification
Foot Pressure Area	25cm (circular diameter: 56.42mm) or other areas
Stabilization Time	10S, 20S, 30S, 40S, 50S (can be set arbitrarily)
Test Pressure	2 ± 0.01KPa; 20 ± 0.1KPa; 200 ± 0.1KPa and other pressures
Test Thickness	0 - 25mm
Resolution	0.001mm
Measurement Method	Single-point measurement and multi-point measurement can be selected arbitrarily
Power Supply Voltage & Power	AC220V ± 10%; Power: 100W
Dimensions	600mm * 550mm * 450mm

ISO 9863 Computer Controlled Geosynthetic Materials Thickness Tester

ISO 9863 Computer Controlled Geosynthetic Materials Thickness Tester
