ISO 12958 ASTM D4716 Compliant Geosynthetic Horizontal Permeameter with 305×305mm Press Plate and ±1 mm Water Head Accuracy

Large Image : ISO 12958 ASTM D4716 Compliant Geosynthetic Horizontal Permeameter with 305×305mm Press Plate and ±1 mm Water Head Accuracy

Product Details:

Place of Origin:	Guangdong, China
Brand Name:	LONROY

Payment & Shipping Terms:

Minimum Order Quantity:	1

Contact Now

ISO 12958 ASTM D4716 Compliant Geosynthetic Horizontal Permeameter with 305×305mm Press Plate and ±1 mm Water Head Accuracy

Description

Press Plate Size:	305*305mm	Normal Pressure Resolution:	5 KPa
Water Head Difference Accuracy:	±1 Mm	Water Storage Capacity:	120 L
Voltage:	220 V	Protection Class:	IP56
Sample Thickness:	50mm	Sealing Rubber Thickness:	10 Mm, 15 Mm, 20 Mm, 25 Mm
Pressurization Method:	Pneumatic Pressurization	Normal Pressure Range:	0 - 600 KPa
Water Level Adjustment:	Lifting Screw, Manual Operation	Water Head Range:	0 - 400 Mm
Material:	Acrylic, Aluminum	Water Head Control:	Two Overflow Ports
Pressure Gauge:	High-precision
Highlight:	ISO 12958 ASTM D4716 Compliant Geosynthetic Horizontal Permeameter , 305×305mm Press Plate Horizontal Permeation Testing Equipment , ±1 mm Water Head Accuracy Geosynthetic Materials Tester

ISO 12958 ASTM D4716 Geosynthetic Materials Horizontal Permeation Testing Equipment

The geosynthetic material horizontal permeability tester measures the horizontal permeability of geosynthetic materials under constant water head flow conditions. During testing, it evaluates water flow within the plane of geotextiles and related products under specified hydraulic gradients and contact material conditions while varying normal pressure.

Technical Features

Constructed with acrylic and aluminum profiles for durability and rust resistance
Compact design for easy installation and operation
Optimized waterway design for simplified testing procedures
Includes water tank for enhanced environmental adaptability
Pneumatic loading system applies constant pressure safely and reliably
High-precision pressure gauge for accurate, easy-to-read measurements
Dual-overflow water level control system enables wide-range, adjustable water head loss
Water level scale provides 1mm reading accuracy
Includes various thicknesses of closed-cell rubber for different specimen requirements

Compliant Standards

GB/T 17633-2019, ISO/FDIS 12958-1998, ASTM D4716-2007, SL/T 235-9-2012

Technical Specifications

Press plate size	305×305mm (Length × Width)
Sample thickness	50mm
Sealing rubber thickness	10 mm, 15 mm, 20 mm, 25 mm
Pressurization method	Pneumatic pressurization
Normal pressure	0 - 600 kPa, adjustable
Normal pressure resolution	5 kPa
Water level height adjustment method	Lifting screw, manual operation
Range of water head adjustment	0 - 400 mm, continuously adjustable (with water level indication displayed)
Accuracy of water head difference	±1 mm
Capacity of the water storage tank	120 L

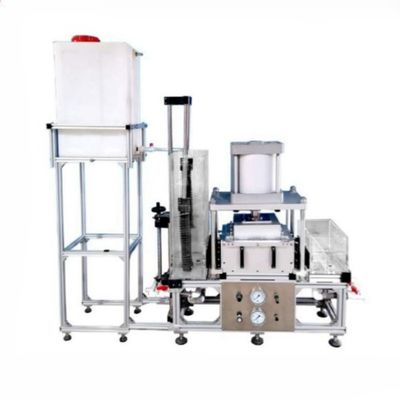

Geosynthetic Horizontal Permeameter Testing Equipment

Horizontal Permeation Testing Equipment in Operation
