ISO 13433 Compliant Geotextile Dynamic Perforation Testing Machine with 500mm Test Height and 150mm Fixture Inner Diameter

ISO 13433 Compliant Geotextile Dynamic Perforation Testing Machine with 500mm Test Height and 150mm Fixture Inner Diameter
ISO 13433 Compliant Geotextile Dynamic Perforation Testing Machine with 500mm Test Height and 150mm Fixture Inner Diameter ISO 13433 Compliant Geotextile Dynamic Perforation Testing Machine with 500mm Test Height and 150mm Fixture Inner Diameter ISO 13433 Compliant Geotextile Dynamic Perforation Testing Machine with 500mm Test Height and 150mm Fixture Inner Diameter ISO 13433 Compliant Geotextile Dynamic Perforation Testing Machine with 500mm Test Height and 150mm Fixture Inner Diameter ISO 13433 Compliant Geotextile Dynamic Perforation Testing Machine with 500mm Test Height and 150mm Fixture Inner Diameter ISO 13433 Compliant Geotextile Dynamic Perforation Testing Machine with 500mm Test Height and 150mm Fixture Inner Diameter

Large Image :  ISO 13433 Compliant Geotextile Dynamic Perforation Testing Machine with 500mm Test Height and 150mm Fixture Inner Diameter

Product Details:
Place of Origin: China
Brand Name: Lonroy
Certification: ISO ASTM CE
Payment & Shipping Terms:
Minimum Order Quantity: 1
Price: Negotaible
Packaging Details: Wooden package
Delivery Time: 5-8 work days
Payment Terms: L/C,D/A,D/P,T/T,Western Union
Supply Ability: 200
Contact Now

ISO 13433 Compliant Geotextile Dynamic Perforation Testing Machine with 500mm Test Height and 150mm Fixture Inner Diameter

Description
Voltage: 220 V Protection Class: Ip56
Return Speed: 1 - 50 Mm/min Displacement Resolution: 0.01 Millimeter
Pulling Displacement: 0 - 150 Mm Load Accuracy: 0.50%
Fixture Diameter: 150±0.5mm Test Height: 500±2mm
Cone Angle: 45° Cone Diameter: 50mm
Cone Mass: 1000±5g Measuring Range: 5~50mm
Measurement Accuracy: 1mm Measuring Cone Mass: 600±5g
Material: Stainless Steel
Highlight:

ISO 13433 Compliant Geotextile Dynamic Perforation Testing Machine

,

500mm Test Height Geotextile Membranes Perforation Resistance Tester

,

150mm Fixture Inner Diameter ISO 13433 Geotextiles Tester

ISO 13433 Geotextiles Dynamic Perforation Testing Machine
Product Description
The dynamic perforation test machine for geotextiles determines the ability of geotextiles, geotextile membranes and related products to resist penetration by steel cones falling from a fixed height. During testing, the geotextile sample is horizontally clamped in the clamping ring while a steel cone of specified mass is dropped from 500mm onto the sample. The falling cone penetrates the sample, creating a hole that is measured using a graduated measuring cone to evaluate impact resistance.
Key Features
  • Constructed from durable stainless steel material
  • Stable framework structure with excellent stability
  • Specialized sample holder prevents slippage during testing
  • Handle-controlled spring switch enables precise cone release
  • Integrated safety protection devices for operator safety
  • High measurement accuracy with excellent repeatability
  • Simple installation and user-friendly operation
Compliant Standards
GB/T 17630-1998, ISO13433-1996, JTG E50 T1128-2006, SL/T 235-17-2012
Technical Specifications
Parameter Specification
Fixture inner diameter 150±0.5mm
Test height 500±2mm
Stainless steel cone
Conical angle 45°
Diameter 50mm
Mass 1000±5g
Measuring cone
Measurement range 5-50mm
Measurement accuracy 1mm
Mass 600±5g

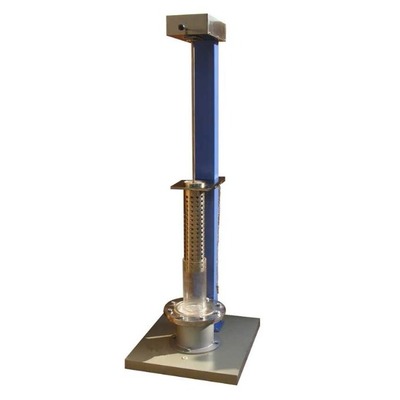

ISO 13433 Compliant Geotextile Dynamic Perforation Testing Machine with 500mm Test Height and 150mm Fixture Inner Diameter 0
ISO 13433 Geotextiles Dynamic Perforation Testing Machine
ISO 13433 Compliant Geotextile Dynamic Perforation Testing Machine with 500mm Test Height and 150mm Fixture Inner Diameter 1
Testing machine side view with sample holder
ISO 13433 Compliant Geotextile Dynamic Perforation Testing Machine with 500mm Test Height and 150mm Fixture Inner Diameter 2
Testing machine in operation with measuring cone
