ISO 13427 Geotextile Wear Test Apparatus with IP56 Protection and 220V Power Supply for Accurate Abrasion Testing

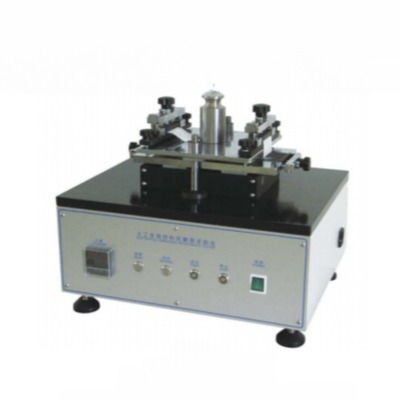

Large Image : ISO 13427 Geotextile Wear Test Apparatus with IP56 Protection and 220V Power Supply for Accurate Abrasion Testing

Product Details:

Place of Origin:	Guangdong, China
Brand Name:	LONROY

Payment & Shipping Terms:

Minimum Order Quantity:	1

Contact Now

ISO 13427 Geotextile Wear Test Apparatus with IP56 Protection and 220V Power Supply for Accurate Abrasion Testing

Description

Voltage:	220 V	Power Supply:	AC 220V 50Hz
Repetition Frequency:	90CPM	Load:	6 ± 0.01 Kilograms
Counting Range:	1 To 9999 Cycles	Effective Friction Area:	50mm×200mm
Repetitive Motion Cycle:	25±1mm	Protection Class:	Ip56
Material:	Stainless Steel	Friction Method:	Sand Cloth/slide Plate
Test Standard:	GB/T 17636-1998 ISO 13427-1998	Fixture Type:	Specially Designed Clamp
Friction Cycle:	Adjustable	Operation Type:	Manual
Sample Clamping:	Prevents Slippage
Highlight:	ISO 13427 Geotextile Wear Test Apparatus , IP56 Protection Geotextile Wear Test Apparatus , 220V Power Supply Geotextile Abrasion Tester

ISO 13427 Geotextile Wear Test Apparatus

Product Description

The geotextile wear test apparatus, also known as the geotextile wear testing machine, uses the sand cloth-slider method to measure the wear resistance of geotextiles and related products.

Introduction

During testing, the sample is placed on a fixed platform and rubbed with abrasive materials having specified surface properties. Under controlled pressure and friction, the abrasive material moves linearly along the horizontal axis. Wear resistance is calculated as the percentage loss of tensile strength before and after friction.

The apparatus employs the sand cloth/slide plate method. The test sample is placed on the fixed upper plate and secured with a clamp. The abrasive material is positioned on the reciprocating lower plate, also clamped at both ends. After repeated friction cycles under controlled conditions, wear performance is determined by measuring the percentage loss of tensile strength.

Key Features

Designed for testing geotextiles and related products
Constructed with durable stainless steel for long service life
Specially designed clamps prevent sample slippage during testing
Adjustable friction cycle settings
Simple installation and operation

Technical Specifications

Effective Friction Area	50mm × 200mm
Repetition Frequency	90CPM
Repetitive Motion Cycle	25±1mm
Load	6 ± 0.01 kilograms
Counting Range	1 to 9999 cycles (adjustable)
Power Supply	AC 220V 50Hz

Compliance Standards

GB/T 17636-1998 ISO 13427-1998
