ISO 6964 IEC 60811 ASTM D1603 Compliant Carbon Black Content Tester for Polypropylene Plastics with High Automation Level

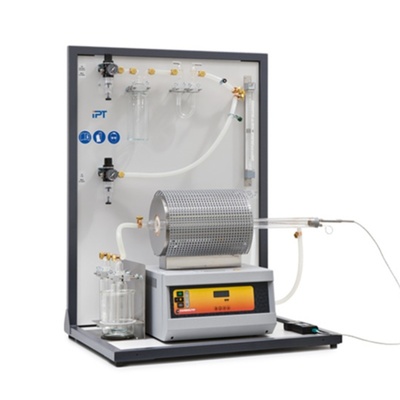

Large Image : ISO 6964 IEC 60811 ASTM D1603 Compliant Carbon Black Content Tester for Polypropylene Plastics with High Automation Level

Product Details:

Place of Origin:	Guangdong, China
Brand Name:	LONROY

Payment & Shipping Terms:

Minimum Order Quantity:	1

Contact Now

ISO 6964 IEC 60811 ASTM D1603 Compliant Carbon Black Content Tester for Polypropylene Plastics with High Automation Level

Description

Voltage:	220 V	Protection Class:	Ip56
Display Method:	Liquid Crystal Display	External Dimensions:	700500500 Mm (LWH)
Power Supply:	220V 50Hz	Test Temperature:	Room Temperature To 1000℃
Heating Tube Diameter:	31×(400 ± 50)mm	Temperature Accuracy:	0.1℃
Heating Rate:	40℃/min	Heating Time Periods:	5
Constant Temperature:	Yes	Automation Level:	High
Material Compatibility:	Polyethylene, Polypropylene, Polybutylene	Heating Method:	High-temperature Decomposition Under Nitrogen Protection
Parameter Display:	Setting Groups, Theoretical Temperature, Actual Temperature, Heating Time
Highlight:	ISO 6964 Compliant Carbon Black Content Tester , IEC 60811 Compliant Carbon Black Testing Machine , ASTM D1603 Compliant Polypropylene Plastics Tester

ISO 6964 IEC 60811 Carbon Black Content Tester ASTM D1603 Polypropylene Plastics Carbon Black Content Testing Machine

Product Description

The carbon black content tester is designed for determining carbon black content in polyethylene, polypropylene, and polybutylene plastics. The test involves weighing the residue obtained after high-temperature decomposition of samples under nitrogen protection. This instrument features ease of use, simple operation, accurate measurement, and high automation level.

Scope of Application

Suitable for determining carbon black content in various polyolefin plastics including polyethylene, polypropylene, and polybutylene.

Compliant with Standards

ISO 6964
GB/T 13021
IEC 60811-4-1
GB/T 2951.41
JTG E50 T1165
ASTM D1603-94
GB/T 13021-1991
CJ/T 125-2000
GB/T 2951.41-2008
GB/T 3515-2005
GB/T 13021-1991
GBT 7876-87
YDT 837.3-1996

Main Features

High automation level - only requires temperature setting with automatic heating
High-precision temperature sensor with 0.1℃ accuracy
Fast heating rate up to 40℃/min
Constant temperature function with adjustable duration
Configurable for 5 different heating periods with varying temperatures and rates
Comprehensive parameter display including setting groups, theoretical/actual temperature, and heating time

Technical Specifications

Parameter	Specification
Test Temperature	Room temperature to 1000℃ (adjustable)
Display Method	Liquid crystal display
Inner Diameter of Heating Tube	31×(400 ± 50)mm
Power Supply	220V 50Hz
Dimensions	700×500×500 mm (L×W×H)
