BS 20344 Shoe Peel Strength Tester Leather Shoes Upper Sole Bonding Strength Value Testing Machine

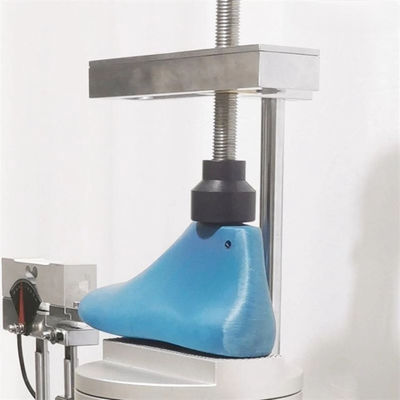

Large Image : BS 20344 Shoe Peel Strength Tester Leather Shoes Upper Sole Bonding Strength Value Testing Machine

Product Details:

Place of Origin:	China
Brand Name:	Lonroy
Certification:	ISO ASTM CE

Payment & Shipping Terms:

Minimum Order Quantity:	1
Price:	Negotaible
Packaging Details:	Wooden package
Delivery Time:	5-8 work days
Payment Terms:	L/C,D/A,D/P,T/T,Western Union
Supply Ability:	200

Contact Now

BS 20344 Shoe Peel Strength Tester Leather Shoes Upper Sole Bonding Strength Value Testing Machine

Description

Peeling Force:	1000N	Cutting Edge Width:	20 ± 0.2 Mm And 10 ± 0.1 Mm
Blade Speed:	20 ± 2 Mm/min	Rod Spacing:	Adjustable Within 50-70 Mm
Micrometer Range:	0.001-10 Mm	Micrometer Accuracy:	0.001 Mm
Movement Range:	40 Mm	Dimensions:	560 × 320 × 750 Mm
Power Supply:	1Ω, AC 220V, 50Hz	Weight:	45 Kg
Voltage:	220V	Protection Class:	Ip56
Average Movement Range:	40 Mm	Width Options:	20 ± 0.2 Mm And 10 ± 0.1 Mm
Speed Adjustability:	Upward And Downward Speeds Adjustable
Highlight:	BS 20344 shoe peel tester , textile strength testing machine 1000N , 220V shoe peel strength tester

BS 20344 Shoe Peel Strength Test Instrument

Leather Shoes Upper and Sole Bonding Strength Value Testing Machine

The BS 20344 Shoe Peel Strength Test Instrument evaluates the bonding strength between shoe uppers and soles. This precision testing machine simulates real-world conditions to assess material durability and performance.

Instrument Features

Evaluates flexure resistance and surface changes in test samples
Simulates compression, stretching, and flexure during wear
Assesses material performance through wrinkle and fracture analysis
Ideal for repeated stretching and fast movement simulations

Compliance Standards

Compliant with GB/T 20991-2007, EN ISO 230344-2012, SATRA TM25, and ISO 4643 standards.

Industry Applications

Used to inspect creases, folds, and damages on samples for material selection reference in shoe manufacturing.

Technical Specifications

Parameter	Specification
Peeling Force	1000N
Width of the Cutting Edge	20 ± 0.2 mm and 10 ± 0.1 mm
Downward Speed of the Cutting Blade	20 ± 2 mm/min (adjustable)
Spacing between Positioning Rod and Pull Rod	Adjustable within 50-70 mm
Micrometer	Range: 0.001-10 mm; Accuracy: 0.001 mm
Average Movement Range	40 mm
Dimensions	560 * 320 * 750 mm (approximate)
Power Supply	1Ω, AC 220V, 50Hz
Weight	45 kg (approximate)

Product Images
