ISO 6452 DIN 75201 Atomization Tester BS EN 14288 Vehicle Decorations Fog Condensation Test Machine

Large Image : ISO 6452 DIN 75201 Atomization Tester BS EN 14288 Vehicle Decorations Fog Condensation Test Machine

Product Details:

Place of Origin:	China
Brand Name:	Lonroy
Certification:	ISO ASTM CE

Payment & Shipping Terms:

Minimum Order Quantity:	1
Price:	Negotaible
Packaging Details:	Wooden package
Delivery Time:	5-8 work days
Payment Terms:	L/C,D/A,D/P,T/T,Western Union
Supply Ability:	200

Contact Now

ISO 6452 DIN 75201 Atomization Tester BS EN 14288 Vehicle Decorations Fog Condensation Test Machine

Description

Voltage:	220V	Protection Class:	Ip56
Dimensions:	406mm635mm432mm	Vaporizer Weight:	77 Kilograms
Shipping Weight:	104 Kilograms	Dry Heat Range:	50°C To 120°C
Condensation Plate Range:	20°C To 40°C	Temperature Calibration:	Within 0.5°C
Temperature Repeatability:	±0.2°C	Beaker Capacity:	1-liter
Number Of Beakers:	6	Heater Type:	Solid Silicon
Controller Technology:	Hart/Franklin Solid	Test Plate Type:	Square Glass
Cooling System:	Solid-state
Highlight:	Atomization tester 220V for vehicles , Textile testing machine IP56 , DIN 75201 atomization tester

ISO 6452 DIN 75201 Atomization Tester BS EN 14288 SAE J1756 Vehicle Decorations Fog Condensation Performance Test Machine

Product Overview

The atomization tester utilizes six 1-liter beakers to hold test samples and conducts all tests using cost-effective square glass plates. Featuring reliable solid-state cooling and heating systems, it eliminates the complexity and expense associated with hot fluid systems while delivering precise thermal control and extended operational time.

Key Features

Dry heat test range: 50°C to 120°C
Condensation plate range: 20°C to 40°C
Temperature calibration within 0.5°C
Repeatability of ±0.2°C
Hart/Franklin solid controller technology
Solid silicon heaters for reliable performance

Compliance Standards

ISO 6452-2007: Rubber or Plastic Coated Fabrics - Determination of Condensation Performance of Fog on Vehicle Interior Decorations
DIN 75201-1992: Automotive - Determination of the fogging performance of materials used for interior equipment
SAE J1756-1994: Test for Determining the Fogging Characteristics of Automotive Interior Materials
QB/T 2728-2005: Leather - Physical and Mechanical Tests - Determination of Fogging Performance
BS EN 14288-2004: Leather. Physical and mechanical tests. Determination of fogging properties
PV 3920: Determination of the fogging value (F) of non-metallic materials for interior components
PV 3015: General Spray Test Standard
ES-X83231: Interior Material Fogging Resistance Test
NES M0141-2006-1: Interior Material Fogging Resistance
D45 1727-2006: Fogging Performance of Interior Cushion Materials and Components in Cab
GM 9305P-1992: Determination of Fogging Properties of Interior Materials for Vehicles
TSM 0503G: Standard for Atomization of Non-metallic Materials of Toyota

Technical Specifications

Specification	Value
Vaporizer weight	170 pounds / 77 kilograms
Shipping weight	230 pounds / 104 kilograms
Compliance Standards	DIN 75201 / ISO 17071 / SAE J1756
Dimensions	25" * 16" * 17" (D * W * H); 406mm * 635mm * 432mm

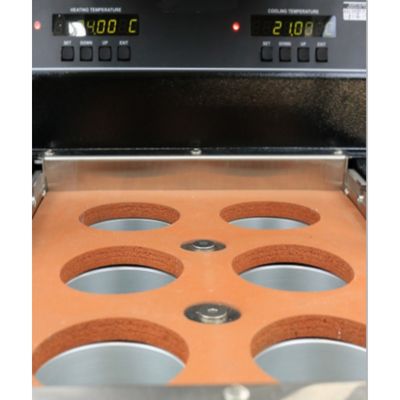

Front view of the Atomization Tester

Side view of the Atomization Tester

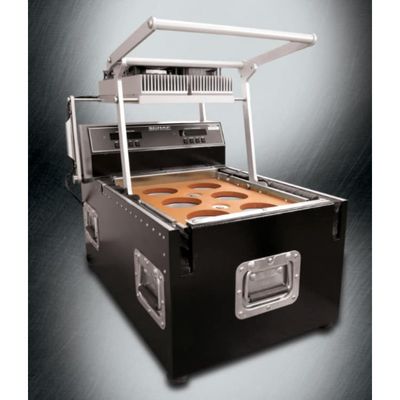

Atomization Tester in operational setup
