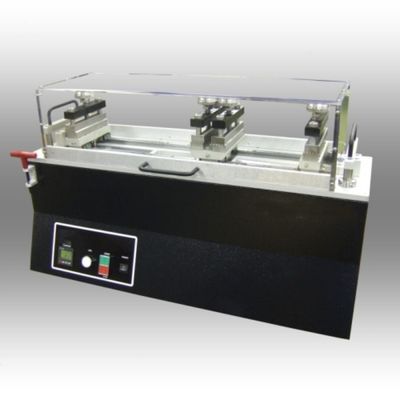

BN 106 GMW 3405 Seam Fatigue Tester Seat Surface Seam Fatigue Resistance Strength Testing Machine

Large Image : BN 106 GMW 3405 Seam Fatigue Tester Seat Surface Seam Fatigue Resistance Strength Testing Machine

Product Details:

Place of Origin:	China
Brand Name:	Lonroy
Certification:	ISO ASTM CE

Payment & Shipping Terms:

Minimum Order Quantity:	1
Price:	Negotaible
Packaging Details:	Wooden package
Delivery Time:	5-8 work days
Payment Terms:	L/C,D/A,D/P,T/T,Western Union
Supply Ability:	200

Contact Now

BN 106 GMW 3405 Seam Fatigue Tester Seat Surface Seam Fatigue Resistance Strength Testing Machine

Description

Voltage:	220V	Protection Class:	IP56
Stroke:	140 Mm	Fixture Width:	50 Mm
Dimensions:	13×31×17 Inches	Weight:	50 Kg
Workstations:	2	Sample Load:	3 Kg
Speed:	30 Reciprocations Per Minute	Counter Digits:	4
Test Interval:	Adjustable (120, 124, 140 Mm)	Material:	Aluminum, Stainless Steel
Surface Treatment:	Powder Coating, Anodized	Bearings:	Ball And Needle
Controller:	Programmable
Highlight:	Seam fatigue tester 140mm stroke , Textile testing machine 50mm fixture , GMW 3405 seam fatigue tester

BN 106 GMW 3405 Seam Fatigue Tester for Seat Surface Materials

The BN 106 GMW 3405 Seam Fatigue Tester evaluates the fatigue resistance strength of automotive seat material seams, including genuine leather, synthetic leather, and fabric. This testing machine helps predict seat service life and provides improvement directions for extending durability.

Key Features

Evaluates tear resistance and elongation of seam pinholes in textile or leather materials
Dual workstation design for efficient testing
Constructed with non-corrosive aluminum and stainless steel components
Durable powder coating and anodized surface treatment
Precision ball and needle bearings for smooth operation
Programmable controller with automatic stop function
Adjustable test speed and weight holder height
Safety protective cover for operator protection

Compliance Standards

Toyota TSL 5101G (3.7), GMW 3405, Nissan M-0154, Ford Motor Co. BN 106-02, TSL 5100G Section 4.2

Technical Specifications

Number of workstations	2
Sample load	3 kg
Speed	30 reciprocations per minute
Counter	4 digits (standard test laps: 2500)
Stroke	140 mm
Test interval	Adjustable (120, 124, 140 mm)
Fixture width	50 mm
Dimensions	13 * 31 * 17 inches (L * W * H)
Weight	50 kg (110 lb)

Operation Procedure

1. Install height setting gauge between sample fixtures
2. Align and secure sewn samples in position
3. Remove height gauge
4. Input test cycle number into counter
5. Start test (machine stops automatically upon completion)
6. Visually assess test samples

BN 106 GMW 3405 Seam Fatigue Tester

Fixture and control detail
