ISO 14572 Automobile Wire Cyclic Bending Testing Machine Automotive Wire Reciprocating Bend Tester

Large Image : ISO 14572 Automobile Wire Cyclic Bending Testing Machine Automotive Wire Reciprocating Bend Tester

Product Details:

Place of Origin:	China
Brand Name:	Lonroy
Certification:	ISO ASTM CE

Payment & Shipping Terms:

Minimum Order Quantity:	1
Price:	Negotaible
Packaging Details:	Wooden package
Delivery Time:	5-8 work days
Payment Terms:	L/C,D/A,D/P,T/T,Western Union
Supply Ability:	200

Contact Now

ISO 14572 Automobile Wire Cyclic Bending Testing Machine Automotive Wire Reciprocating Bend Tester

Description

Power:	7500W	Voltage:	220V
Protection Class:	Ip56	Equipment Weight:	50KG
Power Supply:	AC 220V ± 10%	Test Voltage:	24V
Speed:	10 To 60 ± 1 Times Per Minute	Swing Angle:	Continuously Settable To 180 Degrees Clockwise And Counterclockwise
Counter:	1 - 999999, With Preset Function	Test Stations:	3 Groups
Weights:	2.5N, 3.75N, 5N, 7.5N	R-angle 0.5mm²:	Outer Diameter 1.5mm, Clamp R Value 3.75
R-angle 0.75mm²:	Outer Diameter 1.8mm, Clamp R Value 4.5	R-angle 1.0mm²:	Outer Diameter 2.0mm, Clamp R Value 5.0
R-angle 1.5mm²:	Outer Diameter 2.2mm, Clamp R Value 5.5
Highlight:	ISO 14572 automotive wire tester , automotive wire bending machine 7500W , 220V wire bending tester automotive

ISO 14572 Automobile Wire Cyclic Bending Testing Machine

Automotive Electrical Wire Reciprocating Bending Tester

This specialized testing machine evaluates the durability of automotive electrical wires through cyclic bending tests, with optional low-temperature testing capabilities for comprehensive environmental simulation.

Key Features

Compliant with ISO 14572:2011 testing standards
Optional low-temperature box for environmental testing
Precision-controlled swing angles and test speeds
Multiple test stations for efficient evaluation
Comprehensive safety features including automatic shutdown

Technical Specifications

Parameter	Specification
Swing Angle	Continuously adjustable ±180° (or any specified angle)
Speed	10 to 60 ±1 cycles per minute
Counter	1-999,999 cycles with preset function
Test Stations	3 independent test groups
Weights	2.5N, 3.75N, 5N, and 7.5N (one each)
Safety Features	Automatic shutdown upon wire breakage with data retention
Test Voltage	24V DC
Power Requirements	AC 220V ±10% (main power) DC 24V/5A (switching power supply)
Equipment Weight	50 kg

Fixture R-Values by Wire Specification

Wire Size (mm²)	Outer Diameter (mm)	Clamp R Value
0.5	1.5	3.75
0.75	1.8	4.5
1.0	2.0	5.0
1.5	2.2	5.5

Additional optional R-values available: R7.2, R9.6, R12.6, R18, R22.2, R44.25, R51, R74.25, and others.

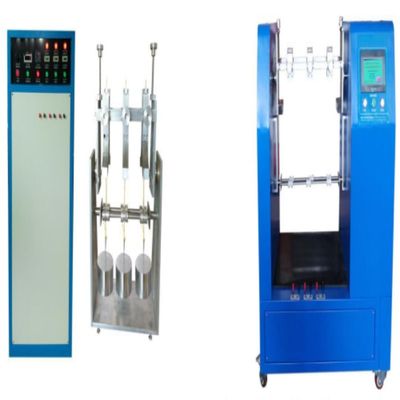

ISO 14572 Automobile Wire Cyclic Bending Testing Machine

Close-up view of testing mechanism
