JASO D609 Automotive Wire AC/DC Current Carrying Temperature Rise Voltage Drop Testing System

Large Image : JASO D609 Automotive Wire AC/DC Current Carrying Temperature Rise Voltage Drop Testing System

Product Details:

Place of Origin:	China
Brand Name:	Lonroy
Certification:	ISO ASTM CE

Payment & Shipping Terms:

Minimum Order Quantity:	1
Price:	Negotaible
Packaging Details:	Wooden package
Delivery Time:	5-8 work days
Payment Terms:	L/C,D/A,D/P,T/T,Western Union
Supply Ability:	200

Contact Now

JASO D609 Automotive Wire AC/DC Current Carrying Temperature Rise Voltage Drop Testing System

Description

Input Voltage:	AC 380V ±10%, 50Hz	Power Supply Type:	DC: Switching Power Supply; AC: AC Constant Current Source
AC Current:	1000A	DC Current:	10 - 1000A
Maximum Output Voltage:	10V	Current Output Method:	Set By Computer
Ammeter Accuracy:	±1% + 3 Digits	DC Voltage Drop:	0.01mV To 199.99mV; 0.1mV To 1999.9mV
Time Range:	0 - 9999.99 Hours/minutes/seconds	Thermocouple Type:	T-type 30AWG Thermocouple
Temperature Channels:	8-channel	Protection Class:	IP56
AC Open-Circuit Voltage:	10V	DC Open-Circuit Voltage:	10V
Incubator Function:	Temperature Control And Monitoring
Highlight:	JASO D609 automotive wire tester , 380V automotive testing system , 1000A textile testing machine

JASO D609 Automotive Electrical Wire AC/DC Current Carrying Temperature Rise and Voltage Drop Testing System

Product Overview

This testing system is designed for evaluating automotive electrical wires under AC/DC current conditions, measuring temperature rise and voltage drop characteristics with precision.

Key Applications

Records temperature changes in conductors when subjected to specific current loads
Measures current magnitude at predetermined conductor temperatures
Tracks voltage drop variations during testing
Features automated cycle testing capability

Compliance Standards

JASO D609:2001, QC/T29106, QC/T 1067.1, QC/T 417.1, TICW15, and other relevant automotive electrical testing standards.

Technical Specifications

Parameter	Specification
Input Voltage	AC 380V ±10%, 50Hz
Power Supply Type	DC: Switching power supply; AC: AC constant current source
Working Current & Open-Circuit Voltage	- AC: 1000A, maximum open-circuit voltage: 10V - DC: 10 - 1000A, maximum output voltage: 10V
Current Output Method	Computer-controlled setting
Ammeter Accuracy	±1% + 3 digits
DC Voltage Drop Measurement	Ranges: 0.01mV to 199.99mV; 0.1mV to 1999.9mV
Time Range	0 - 9999.99 hours/minutes/seconds with automatic current cutoff
Temperature Measurement	Eight-channel test temperature instruments with T-type 30AWG thermocouples
Incubator Function	Temperature control and monitoring capability

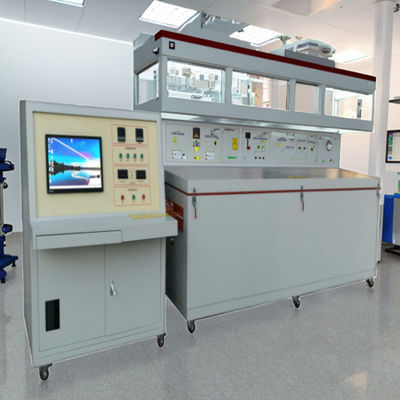

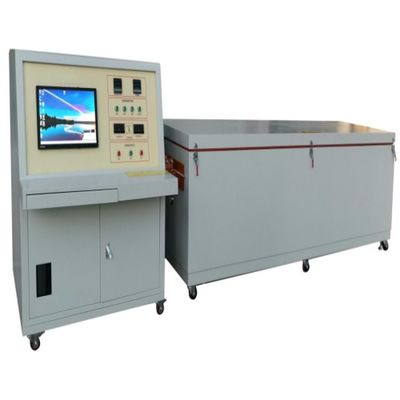

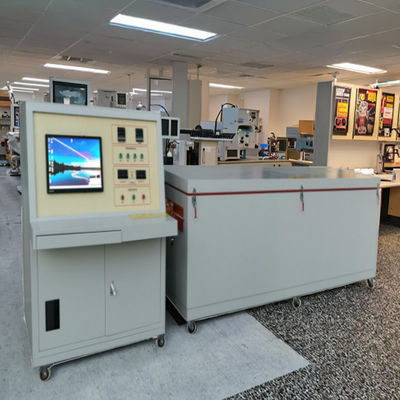

System Images
