ISO 6722 Automotive Wire Low Temperature Winding Testing Machine SAE J1128 Circular Cables Tester

Large Image : ISO 6722 Automotive Wire Low Temperature Winding Testing Machine SAE J1128 Circular Cables Tester

Product Details:

Place of Origin:	China
Brand Name:	Lonroy
Certification:	ISO ASTM CE

Payment & Shipping Terms:

Minimum Order Quantity:	1
Price:	Negotaible
Packaging Details:	Wooden package
Delivery Time:	5-8 work days
Payment Terms:	L/C,D/A,D/P,T/T,Western Union
Supply Ability:	200

Contact Now

ISO 6722 Automotive Wire Low Temperature Winding Testing Machine SAE J1128 Circular Cables Tester

Description

Voltage:	220V	Protection Class:	IP56
Servo Motor Power:	1500W	Sample Winding Loops:	3 Loops
Sample Cross-section:	<25mm²	Winding Rod Diameters:	Φ6-98.5mm (optional)
Heavy Weights:	0.5kg, 2.5kg, 5kg, 8kg, 10kg	Combined Weights:	10kg (4 Pieces)
Structural Material:	Stainless Steel	Controller Type:	PLC + Touch Screen
Max Rolling Speed:	130 Rpm	Crimping Loops:	Adjustable
Test Standards:	ISO 6722, ISO 14572, ISO 19642, SAE J1128, QC/T 730, JASOD 611-2009	Sample Capacity:	30kg (2 Samples/group)
Device Type:	Testing Machine
Highlight:	ISO 6722 automotive wire tester , low-temperature winding tester , 1500W servo motor tester

ISO 6722 14572 19642 Automotive Wire Low Temperature Winding Testing Machine

SAE J1128 JASO D611 Circular Cables Tester

The automotive wire low-temperature winding testing machine evaluates and determines the performance of circular cables or circular insulated wire cores under low-temperature conditions.

Compliance Standards

ISO 6722
ISO 14572
ISO 19642
SAE J1128
QC/T 730
JASOD 611-2009

Technical Specifications

Feature	Specification
Low-Temperature Winding Sample	Cross-sectional area: less than 25mm²
Winding Rod Diameter	Φ6, 8, 10, 12, 15, 18, 20, 25, 30, 32, 40, 50, 58, 62.5, 74, 82.5, 90, 98.5 mm (optional)

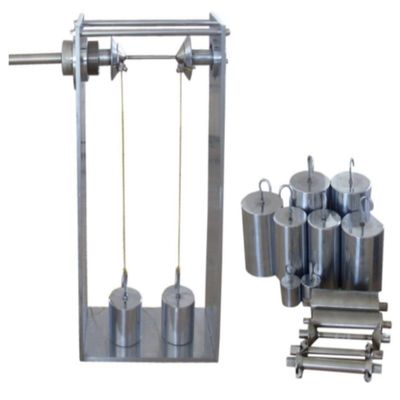

Weights	- Heavy weights: 0.5 kg, 2.5 kg, 5 kg, 8 kg, 10 kg - Combined weights: 10 kg (4 pieces) Note: For heavy loads such as 30 kg weights, two samples are tested as one group
Number of Sample Winding Loops	3 loops
Device Structural Material	Rollers and brackets made of stainless steel
Servo Motor (Electric Controller)	1500W
Controller (Electric Controller)	PLC + Touch Screen
Rolling Speed (Electric Controller)	Maximum 130 revolutions per minute (settable via touch screen)
Crimping Loops (Electric Controller)	Number of crimping loops can be set (via touch screen)

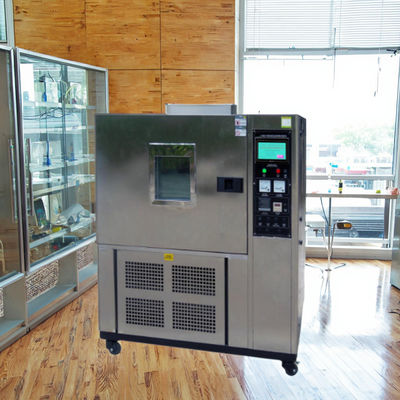

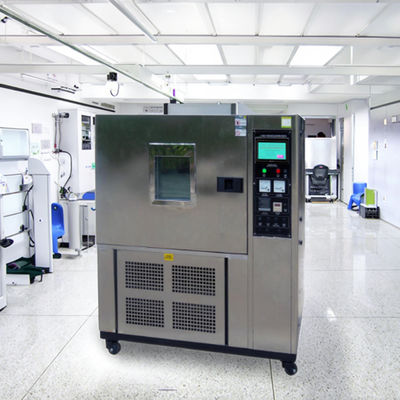

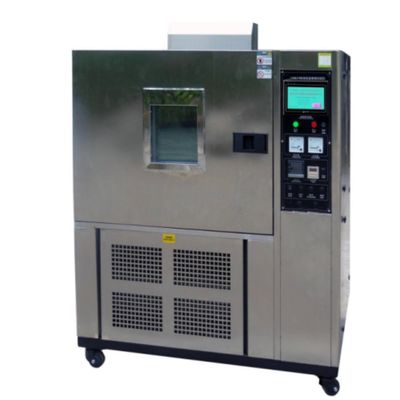

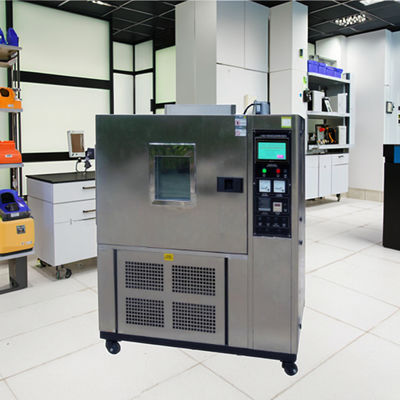

Product Images
