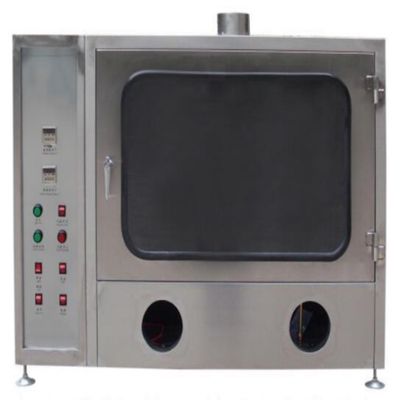

ISO 672 DIN 72551 Automobile Wiring Combustion Testing Machine JIS 3005 Wire Flammability Tester

ISO 672 DIN 72551 Automobile Wiring Combustion Testing Machine JIS 3005 Wire Flammability Tester
ISO 672 DIN 72551 Automobile Wiring Combustion Testing Machine JIS 3005 Wire Flammability Tester

Large Image :  ISO 672 DIN 72551 Automobile Wiring Combustion Testing Machine JIS 3005 Wire Flammability Tester

Product Details:
Place of Origin: China
Brand Name: Lonroy
Certification: ISO ASTM CE
Payment & Shipping Terms:
Minimum Order Quantity: 1
Price: Negotaible
Packaging Details: Wooden package
Delivery Time: 5-8 work days
Payment Terms: L/C,D/A,D/P,T/T,Western Union
Supply Ability: 200
Contact Now

ISO 672 DIN 72551 Automobile Wiring Combustion Testing Machine JIS 3005 Wire Flammability Tester

Description
Voltage: 220V Protection Class: Ip56
Flame Size: Outer Flame 100mm, Inner Flame 50mm Inner Flame Temperature: 900 ± 50 Degrees
Combustion Duration: 15 Seconds Chamber Dimensions: 305*355*610mm
Test Chamber Dimensions: 650×450×900mm Test Chamber Material: Stainless Steel
Test Chamber Background: Matte Black Combustion Gas Source: High-purity Propane Gas Or Liquefied Petroleum Gas
Tested Cable Length: 600mm Sample Clamping Angle: 45 Degrees
Bunsen Burner Diameter: 9mm Temperature Measurement: K-type Thermocouple, TES-1310 Thermometer
JIS3005 Sample Length: 300mm
Highlight:

Automotive wires flammability tester 220V

,

Textile flammability tester 100mm flame

,

Flammability tester with warranty

ISO 672 DIN 72551 Automobile Wiring Combustion Testing Machine JIS 3005 SAE J1128 Automotive Wires Flammability Tester
This professional testing machine evaluates the flammability characteristics of automotive wiring according to multiple international standards.
Applicable Standards
  • QC/T703-2005
  • SAE-J 1128-2005
  • DIN 72551
  • ISO 672
Technical Specifications
Component Specifications
Test chamber
  • Sealing: Sealed structure
  • Dimensions: 650*450*900mm
  • Material: Stainless steel
  • Background: Matte black
Combustion gas source High-purity propane gas or liquefied petroleum gas
Tested electrical cable
  • Length: 600mm (24 inches)
  • Sample clamping angle: 45 degrees
Bunsen burner
  • Nominal tube diameter: 9mm
  • Flame size: Outer flame 100mm (4 inches), inner flame 50mm (1/2 inch)
  • Inner flame temperature: At least 900 ± 50 degrees
Burner placement Bunsen burner and blowtorch are placed below the sample, perpendicular to the sample axis
Ignition & combustion duration (standard mode)
  • Ignition: Automatic ignition
  • Combustion duration: 15 seconds
Temperature measurement configuration Equipped with high-precision K-type thermocouple and imported TES-1310 thermometer
Exhaust system Equipped with an exhaust system; exhaust gas is discharged through the exhaust fan after the test
JIS3005 Horizontal Combustion Configuration (Additional)
Component Specifications
Fixture JIS3005 horizontal combustion test fixture
Burner Horizontal combustion burner
Chamber dimensions 305*355*610mm
JIS3005 Horizontal Combustion Test Parameters
  • Sample length: 300mm
  • Sample placement angle: Horizontal
  • Combustion time: 30 seconds
  • Spirit lamp specs: Diameter 10mm; inner flame length approx. 35mm; outer flame length 130mm
Shutdown Method
Triggers when the preset data is reached
ISO 672 DIN 72551 Automobile Wiring Combustion Testing Machine JIS 3005 Wire Flammability Tester 0
ISO 672 DIN 72551 Automobile Wiring Combustion Testing Machine JIS 3005 Wire Flammability Tester 1
