ISO 19642 Wire Identification Durability Tester Automotive Wiring Mark Durability Testing Machine

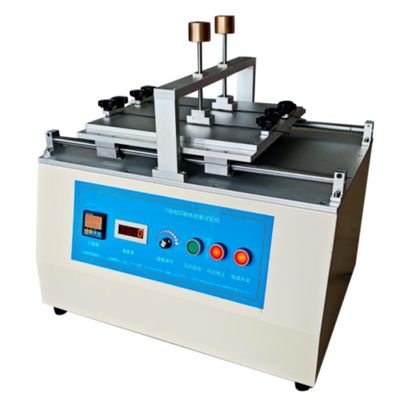

Large Image : ISO 19642 Wire Identification Durability Tester Automotive Wiring Mark Durability Testing Machine

Product Details:

Place of Origin:	China
Brand Name:	Lonroy
Certification:	ISO ASTM CE

Payment & Shipping Terms:

Minimum Order Quantity:	1
Price:	Negotaible
Packaging Details:	Wooden package
Delivery Time:	5-8 work days
Payment Terms:	L/C,D/A,D/P,T/T,Western Union
Supply Ability:	200

Contact Now

ISO 19642 Wire Identification Durability Tester Automotive Wiring Mark Durability Testing Machine

Description

Voltage:	220V	Power Supply:	220V/50Hz
Motor Power:	40W	Protection Class:	IP56
Friction Speed:	10 - 40 C.P.M.	Cleaning Distance:	250mm
Load:	10 ± 1 N	Wool Felt Dimensions:	50mm × 50mm × 3mm
Wool Felt Composition:	75% Wool, 25% Fibers	Test Groups:	3 Groups
Counter Digits:	6-digit	Max Count:	999999
Wire Length:	300mm	Spare Parts Quantity:	15 Pieces
Test Standard:	ISO 19642
Highlight:	ISO 19642 vehicle wire tester , 220V 40W durability tester , textile testing machine motor

ISO 19642 Vehicle Wire Identification Durability Test Equipment

Automotive Wiring Mark Durability Testing Machine

This specialized testing equipment evaluates the durability of printed characters on automotive wiring, ensuring compliance with ISO 19642 standards for vehicle wire identification.

Test Standard

Compliant with ISO 19642 standard requirements.

Test Method

The testing procedure involves:

Securing a 300mm wire sample with printed characters facing upward
Using a wool felt friction hammer with controlled load, speed, and stroke
Reciprocating motion to assess printed character durability
Also suitable for testing printed characters on plastic surfaces

Technical Specifications

Feature	Specification
Friction Speed	10 - 40 C.P.M. (Cycles Per Minute), adjustable
Cleaning Distance	250mm
Load	10 ± 1 N (ISO 19642 compliant)
Wool Felt	50mm * 50mm * 3mm (75% wool, 25% fibers)
Test Group Configuration	Three simultaneous test groups
Spare Parts (Wool Felt)	15 pieces included
Counter	6-digit (max 999999)
Motor	40W
Power Supply	220V/50Hz
