EN L0028 Automotive Interior Material Melting Tester Melting Property Determination Instrument

Large Image : EN L0028 Automotive Interior Material Melting Tester Melting Property Determination Instrument

Product Details:

Place of Origin:	China
Brand Name:	Lonroy
Certification:	ISO ASTM CE

Payment & Shipping Terms:

Minimum Order Quantity:	1
Price:	Negotaible
Packaging Details:	Wooden package
Delivery Time:	5-8 work days
Payment Terms:	L/C,D/A,D/P,T/T,Western Union
Supply Ability:	200

Contact Now

EN L0028 Automotive Interior Material Melting Tester Melting Property Determination Instrument

Description

Voltage:	220V	Protection Class:	Ip56
Radiant Heat Power:	500W	Heat Flux Range:	10W/cm²
Sample Size:	70*70 Mm	Sample Thickness:	≤13mm
Radiant Source Diameter:	Φ(100 ± 5)mm	Metal Ring Diameter:	Φ118mm
Residue Container Diameter:	Φ118mm	Residue Container Depth:	12mm
Holder-Sample Distance:	30mm	Container-Holder Distance:	300mm
Stainless Steel Thickness:	3mm	Sample Holder Type:	Metal Ring Frame / Stainless Steel Concave
Radiation Surface:	Transparent Glass Plate
Highlight:	Automotive interior melting tester 500W , Textile melting tester IP56 , Material melting tester 220V

EN L0028 Automotive Interior Material Melting Performance Tester

Vehicle Melting Property Determination Instrument

The automotive interior material melting performance tester is designed using advanced technology to measure the melting state of automotive interior materials under specified heat source irradiation.

Product Features

Measures melting properties of automotive interior materials
Precise heat flux measurement capabilities
Dual sample holder options for different testing requirements
Compliant with industry standard testing methods

Technical Specifications

Parameter	Specification
Radiant Heat Source Power	500W
Radiant Heat Source Radiation Surface	Transparent glass plate with a diameter of Φ(100 ± 5)mm
Sample Holder (Metal Ring Frame Type)	Metal ring frame with an inner diameter of Φ118mm, and a mesh made of metal wires
Residue Container	Inner diameter of Φ118mm, depth of 12mm
Sample Size	70*70 mm, thickness not exceeding 13mm
Sample Holder (Stainless Steel Concave Type)	Concave holder made of 3mm stainless steel plate
Distance Between Residue Container and Sample Holder	300mm
Distance Between Upper Surface of Sample and Surface of Radiant Source	30mm
Heat Flux Measurement Range	10W/cm²

Reference Standard

1995L0028-EN-01.01.2007-002.001-25 (ANNEX V) Method for Measuring the Melting Properties of Materials

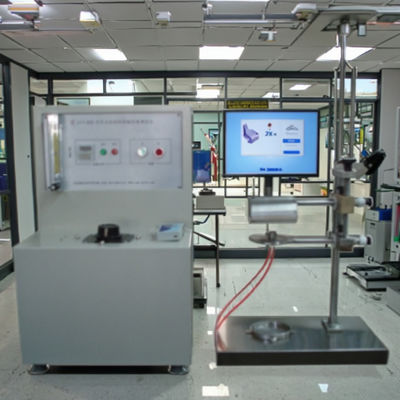

Product Images
