ISO 20344 EN 344 Shoe Soles Rubber Wear Resistance Tester Shoe Boot Abrasion Resistance Test Device

Large Image : ISO 20344 EN 344 Shoe Soles Rubber Wear Resistance Tester Shoe Boot Abrasion Resistance Test Device

Product Details:

Place of Origin:	China
Brand Name:	Lonroy
Certification:	ISO ASTM CE

Payment & Shipping Terms:

Minimum Order Quantity:	1
Price:	Negotaible
Packaging Details:	Wooden package
Delivery Time:	5-8 work days
Payment Terms:	L/C,D/A,D/P,T/T,Western Union
Supply Ability:	200

Contact Now

ISO 20344 EN 344 Shoe Soles Rubber Wear Resistance Tester Shoe Boot Abrasion Resistance Test Device

Description

Voltage:	220V	Power Type:	Electronic
Protection Class:	IP56	Steel Plate Coating:	Anti-acid
Drive Mechanism:	Reducer-driven	Bearing Type:	Automatic Drum-type
Sample Container:	Disassemblable	Waste Collection Material:	18/8 Stainless Steel
Test Method:	Rotating Roller	Measurement Parameter:	Weight Loss
Load Application:	Controlled	Friction Medium:	Standard Paper
Dual-action Device:	Yes	Sample Rotation:	Optional
Flat Structure:	Steel Plate
Highlight:	Hub wear resistance tester for shoe soles , Rubber wear tester 220V , EN ISO 20344 textile testing machine

ISO 20344 UNI 8615 Shoe Soles Rubber Wear Resistance Tester

Product Description

This wear resistance tester measures the abrasion resistance of rubber shoe soles. The sample is placed on a drum with applied load while standard friction paper creates controlled abrasion. Weight measurements before and after testing determine material loss, with standardized calculations providing wear resistance metrics.

Compliant Standards

EN ISO 20344 - Test methods for personal protective equipment footwear
EN 344 - Safety and occupational footwear requirements
ISO 4696 - Iron ore testing standards
UNI 9185 - Wear resistance measurement using rotating roller
BS903 - Rubber physical properties testing
UNI 8615, DIN 53.516

Product Features

Flat steel plate construction with anti-acid coating
Dual-action device powered by efficient reducer
Automatic drum-type bearing with detachable sample container
Optional sample rotation device
18/8 stainless steel waste collection plate

Technical Specifications

Customized Support	OEM, ODM, OBM
Place of Origin	Guangdong, China
Warranty	1 Year
Brand Name	Lonroy
Product Name	Hub Wear Resistance Tester
Standard Compliance	EN ISO 20344, EN 344, UNI 8615 9185, DIN 53.516, ISO 4696
Power Source	Electronic

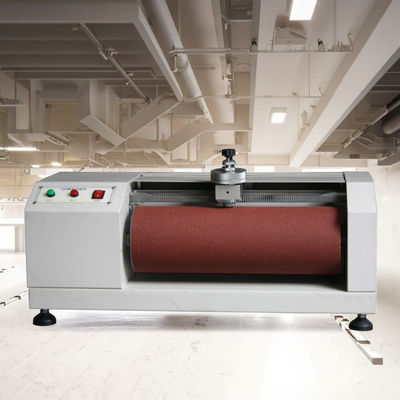

ISO 20344 UNI 8615 Shoe Soles Rubber Wear Resistance Tester

Tester drum mechanism detail

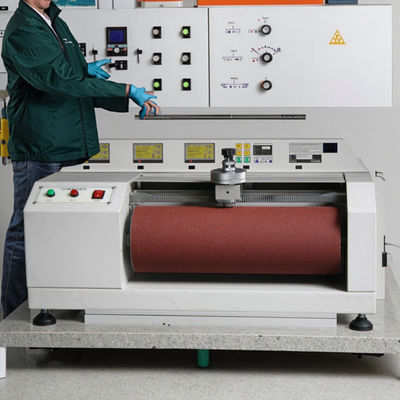

Equipment side profile

Tester control panel

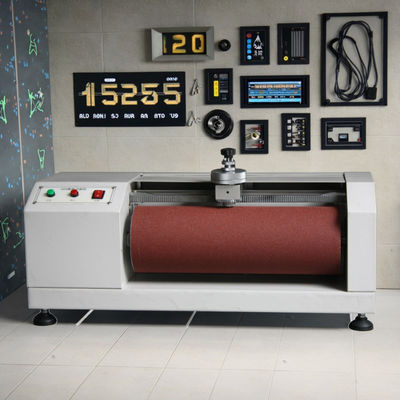

Complete testing system
