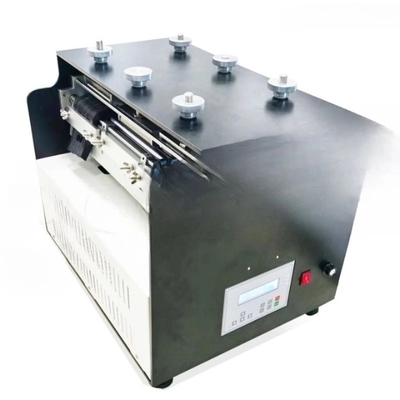

ASTM D1052 ISO 5423 Shoe Sole Bending Resistance Test Machine SATRA TM60 Bending Resistance Tester

ASTM D1052 ISO 5423 Shoe Sole Bending Resistance Test Machine SATRA TM60 Bending Resistance Tester

Product Features

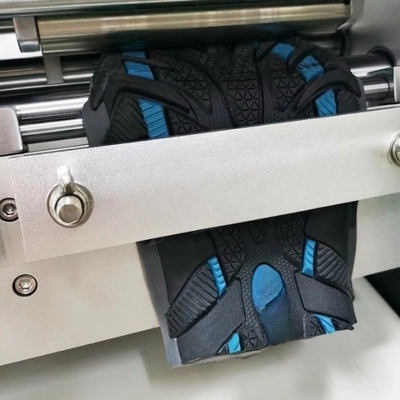

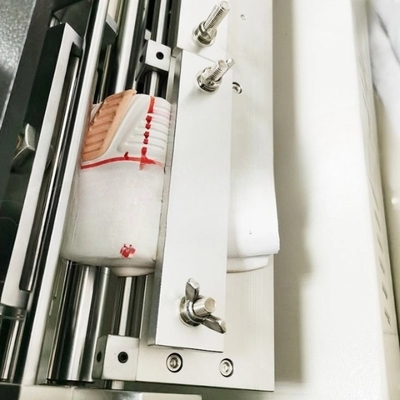

The bending resistance test of the shoe sole is conducted by placing the strip-shaped test sample or the shoe sole on the bending testing machine, ensuring that the cut edge is directly above the center of the rotating shaft of the bending testing machine. The test sample is then freely bent 90 degrees on the shaft by the bending testing machine. After a certain number of test cycles, the length of the cut edge of the test sample is measured to evaluate the bending resistance performance of the test sample based on the rate of the cut edge growth.

Reference Standards

GB/T2099-2007, ASTM-D1052, ISO-5423, SATRA TM60, HB-T2411, HG/T 2411, etc. Standards

Product Features

Surface treatment of the body: Utilize DuPont powder from the United States and the electrostatic spraying process. After being cured at a high temperature of 200℃, it ensures long-lasting color stability without fading.

LED-SLD806 integrated display control box, menu-based operation mode;

The position can be adjusted by clicking, and the test speed can be adjusted as well；

The mechanical components are made of non-corrosive structural aluminum and stainless steel materials.

Precise drive motor, runs smoothly and with low noise;

It has the functions of counting and timing with automatic stop. The test can be stopped automatically once the set test value is reached.

High-precision selected bearings ensure smooth and stable rotation, with a long service life.

The mechanical components are made of non-corrosive structural aluminum and stainless steel materials.

One-click fully automatic testing, with simple and convenient operation.

Technical specifications
