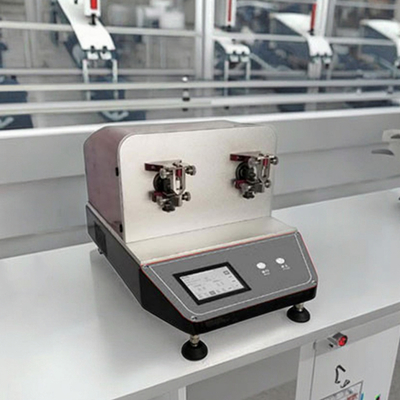

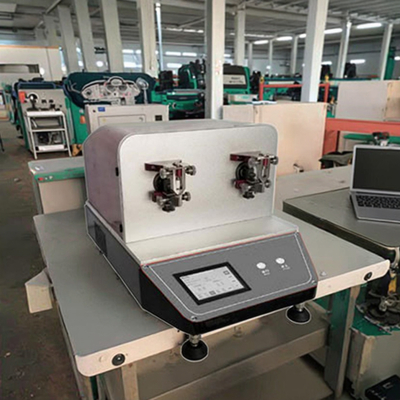

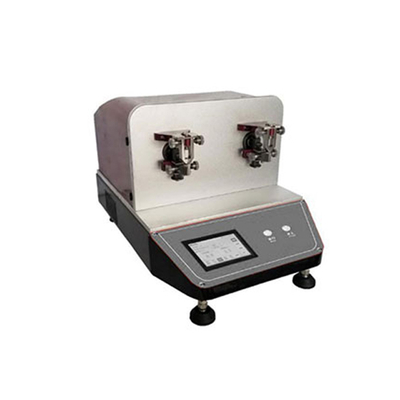

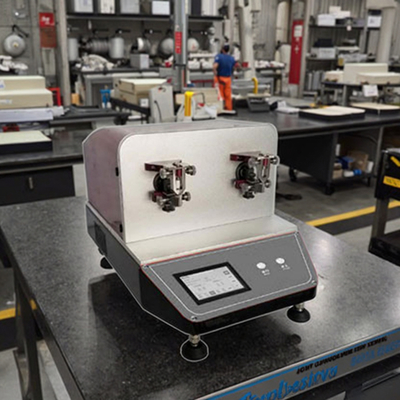

60-120° Test Range Zipper Tape Folding Fatigue Resistance Testing Machine with AC 220V Power Supply

Large Image : 60-120° Test Range Zipper Tape Folding Fatigue Resistance Testing Machine with AC 220V Power Supply

Product Details:

Place of Origin:	China
Brand Name:	Lonroy
Certification:	ISO ASTM CE
Model Number:	LR-A113

Payment & Shipping Terms:

Minimum Order Quantity:	1
Price:	Negotaible
Packaging Details:	wooden package
Delivery Time:	5-8 work days
Payment Terms:	L/C,D/A,D/P,T/T,Western Union
Supply Ability:	200

Contact Now

60-120° Test Range Zipper Tape Folding Fatigue Resistance Testing Machine with AC 220V Power Supply

Description

Product Name:	Zipper Tape Abrasion Fatigue Tester	Power Supply:	AC 220V, 50Hz
Dimensions:	Approximately 400mm (length) * 220mm (width) * 350mm (height)	Test Speed:	40 - 120 Times Per Minute
Test Range:	60 - 120°	Number Of Times Setting:	0 - 99999
Highlight:	Zipper Tape Folding Fatigue Tester , Folding Fatigue Zipper Tape Testing Machine

Zipper Tape Folding Fatigue Tester Zip Tape Folding Fatigue Resistance Testing Machine

Introduction

Zipper tape fatigue resistance testing instrument, fatigue resistance test, simulating the usage state of zipper tape, repeatedly bending it at a certain speed and angle to test the quality of the zipper tape.

Product Features

1. Color touch screen display and control, with both Chinese and English interfaces, and menu-style operation mode.

2. The core control components are equipped with the 32-bit multi-functional motherboard from STMicroelectronics.

Technical Specification

Adjustable range of movable clamp to fixed clamp	5mm to 15mm
Fixed clamp specifications	Thickness 3mm, Width 5mm, Clamping width 5mm
Movable clamp specifications	Thickness 8mm, Width 4mm, Clamping width 0.5mm
Transmission structure	Crank-rocker mechanism
Test range	60 - 120°
Test speed	40 - 120 times per minute
Number of times setting	0 - 99999
Workstations per group	Two workstations (one control mechanism) in one group
Dimensions	Approximately 400mm (length) * 220mm (width) * 350mm (height)
Power Supply	220V, 50HZ

Tag:

Contact Person: Ms. Kaitlyn Wang

Tel: 19376687282

Fax: 86-769-83078748
