Zipper Adhesive Tape Twisting Tester Metals Torsional Resistance Testing Machine

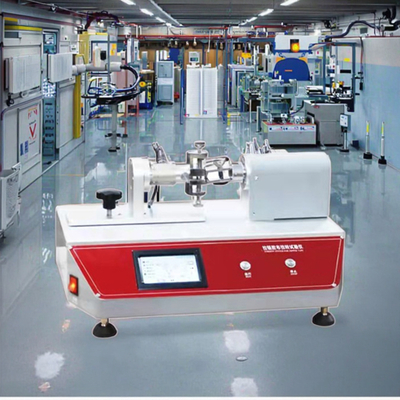

Large Image : Zipper Adhesive Tape Twisting Tester Metals Torsional Resistance Testing Machine

Product Details:

Place of Origin:	China
Brand Name:	Lonroy
Certification:	ISO ASTM CE
Model Number:	LR-A112

Payment & Shipping Terms:

Minimum Order Quantity:	1
Price:	Negotaible
Packaging Details:	wooden package
Delivery Time:	5-8 work days
Payment Terms:	L/C,D/A,D/P,T/T,Western Union
Supply Ability:	200

Contact Now

Zipper Adhesive Tape Twisting Tester Metals Torsional Resistance Testing Machine

Description

Product Name:	Zipper Adhesive Tape Twisting Tester	Weight:	38kg
Power Supply:	AC 220V, 50Hz, 80W	Dimensions:	480 × 360 × 380 Mm (Length × Width × Height)
Load Accuracy:	≤ ±0.5% F·S	Clamping Device Width:	≤ 12mm
Highlight:	Zipper Twisting Tester , Metals Torsional Resistance Twisting Tester , Adhesive Tape Twisting Tester

Zipper Adhesive Tape Twisting Tester Metals Torsional Resistance Testing Machine

Introduction

Test for torsional resistance of the pull tabs used in adhesive tapes, metals, injection molding, and nylon zippers.

Product Features

1. The angle test uses a high-precision encoder.

2. Touchscreen display, with a user-friendly interface design for easy operation;

3. The deletion method is to select and delete, which makes it convenient to delete any single test result.

Technical Specification

Torque test range	0 to ±2.000 N.m
Minimum fixture range	≥ 0.2mm
Clamping device width	≤ 12mm
Interfaces and software	Printer interface, computer interface, online communication cable, online operation software
Minimum graduation value	0.001 N.M
Load accuracy	≤ ±0.5% F·S
Loading method	Bidirectional torsion
Twist angle range	≤ 9999°
Power Supply	AC 220V, 50Hz, 80W
Dimensions	480 × 360 × 380 mm (Length × Width × Height)
Weight	38kg
