Introduction

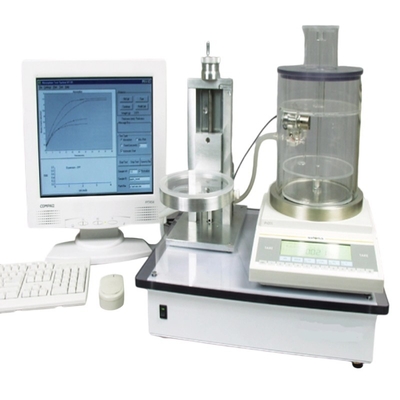

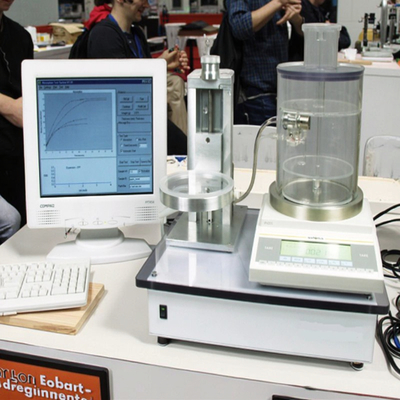

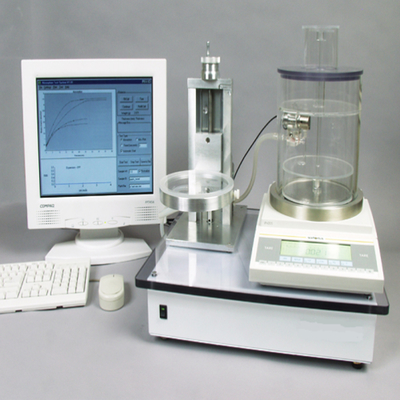

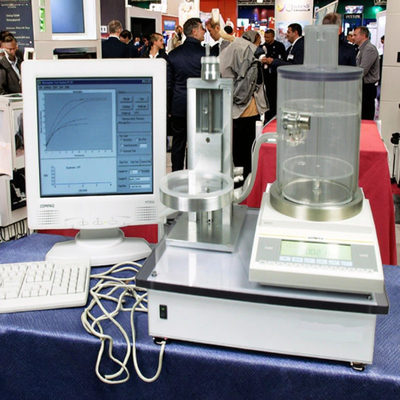

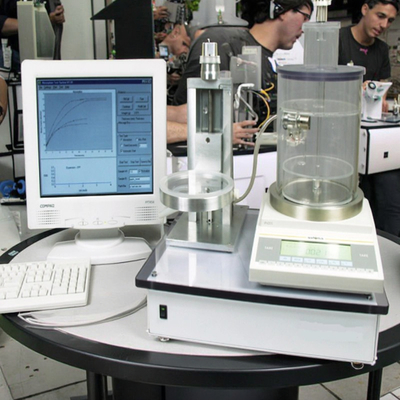

The water absorption test system always maintains a constant liquid level of the sample under test. The liquid is supplied to the sample through a siphon from the liquid storage tank. The weight of the liquid-filled storage tank is measured by a precision electronic balance (0.001g, 10 data points per second) and monitored by a program running in the Windows environment. The program uses the weight information to calculate the liquid level in the storage tank and then controls the height of the sample to match the liquid level. The height adjustment is maintained by an electric precision lead screw assembly. The weight of the absorbed liquid is recorded in real time to the hard disk. The graph of the absorption rate is immediately drawn in the user interface window.

Application fields

Tissues, towels, super absorbent agents, non-woven fabrics, diapers, sanitary products, etc.

Two modes

Textiles comply with ISO 9073-12 standard, and general tests conform to ASTM D-5802 standard.

Product Features

1. The relationship between the quantitative absorption and desorption data of various materials and time

2. Generate real-time graphics and XLS data

3. Two modes: Textiles conform to ISO 9073-12 standard, and general tests conform to ASTM D-5802 standard.

4. The replaceable test board is almost applicable to any material interface.

5. The total absorption capacity of the standard balance is up to 350 grams.

6. Maintain a constant liquid head of the material under test.

7. Automatic Test Start and Termination
