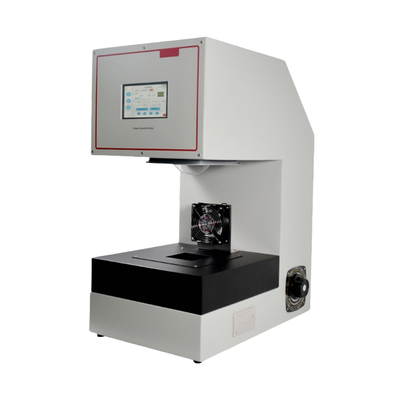

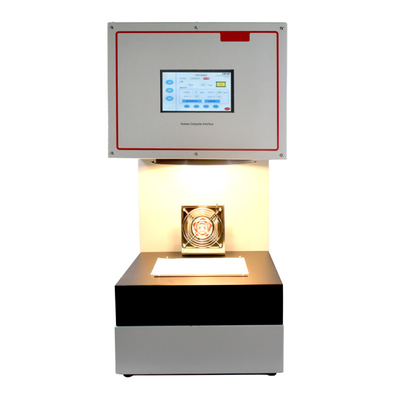

FZ/T 62011 01009 Textile Shading Performance Tester JIS L1055 Fabric Transmittance Testing Machine

FZ/T 62011 01009 Textile Shading Performance Tester JIS L1055 Fabric Transmittance Testing Machine

Introduction

Fabric shading performance tester. The relatively stable and intense light emitted by the incandescent light source passes through a coated fabric. Using a standard tester, the amount of light that passes through after being blocked and absorbed by the coated fabric on a 100 cm² area is measured, and compared with the original light quantity when there is no sample. The transmittance is used to represent it.

Compliant with the standards

JIS L1055-2009, FZ/T 62011.1-2016 Textile Products: Curtains, FZ/T 01009-2008 Method for Measuring Light Transmittance of Textile Fabrics, FZ/T 62025-2015 Curtain Window Decorative Fabrics

Application Features

1. The instrument is composed of the following components: casing, light source, illuminance meter, sample pressure block, touch screen, PLC control system. It has a high degree of automation, automatically records and retains the test data, and can be printed.

2. During the experiment, first adjust the light source voltage knob to the lowest position. Turn on the power supply to preheat the illuminance sensor for 10 seconds. Manually rotate the voltage adjustment knob until the light source intensity reaches 10,000 Lux (with an accuracy of 5%). After stabilizing for 5 seconds, the normal testing can be carried out.

Technical Specification
