Product Details:
Place of Origin: China
Brand Name: Lonroy
Certification: ISO ASTM CE
Model Number: DM8116
Payment & Shipping Terms:
Minimum Order Quantity: 1
Price: Negotaible
Packaging Details: Wooden package
Delivery Time: 5-8 work days
Payment Terms: L/C,D/A,D/P,T/T,Western Union
Supply Ability: 200

DM8116 MWDXRF Micro Sulfur Analyzer Self-operating Oxygen Bomb Calorimeter XRF Analyzer XRF Analyzer XRF Analyzer

Description
Dimension: 330mm (W) × 460mm (D) × 350mm (H) Power Requirements: 220V ±20V, 50Hz, ≤200W
Weight: 25KG Warranty: 1 Year
Certification: Includes Calibration Certification
Highlight:

MWDXRF micro sulfur analyzer

,

self-operating oxygen bomb calorimeter

,

XRF analyzer with warranty

DM8116 MWDXRF Micro Sulfur Analyzer Self-operating Oxygen Bomb Calorimeter XRF Analyzer XRF Analyzer XRF Analyzer

 DM8116 MWDXRF Micro Sulfur Analyzer Self-operating oxygen bomb calorimeter

Description:

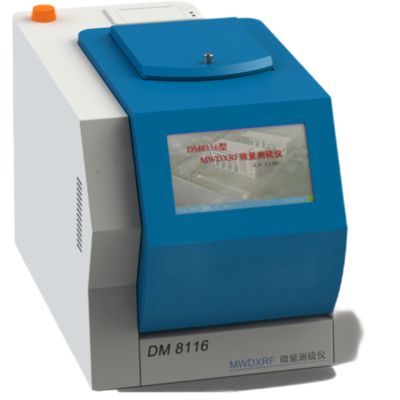

The DM8116 monochromatic excitation wavelength dispersive X-ray fluorescence micro-sulfur analyzer, abbreviated as the DM8116 MWDXRF micro-sulfur analyzer, is the first point-to-point monochromatic excitation XRF spectrometer developed by our company based on decades of research experience in X-ray fluorescence spectrometers and the company's existing DM series X-ray fluorescence sulfur analyzers, X-ray fluorescence multi-element analyzers, and wavelength dispersive X-ray fluorescence multi-channel spectrometers. It adopts the following technologies and components, making the DM8116 with a 50W X-ray tube have outstanding reproducibility and stability, as well as a low detection limit, effectively elevating the detection level to a new height.

Point-to-point focused monochromatic excitation wavelength dispersive X-ray fluorescence (MWDXRF) analysis technology

The limit of detection (LOD) of an X-ray fluorescence spectrometer refers to the corresponding quantity of three times the standard deviation of the instrument background signal generated by the matrix blank, that is:

(1) In the formula, Rb represents the background (background) count intensity, N is the count intensity of the low-concentration sample with a known concentration of C, and T is the measurement time. From Equation (1), it can be seen that the detection limit is inversely proportional to the sensitivity (N - Rb) / C and directly proportional to the square root of the background Rb. Under the condition of a fixed measurement time, to reduce the detection limit, it is necessary to increase the sensitivity and/or reduce the background.

Meet the requirements for ultra-low sulfur content detection of automotive gasoline and diesel as stipulated in National V and National VI standards.

Low detection limit (300s): 0.33 parts per million.

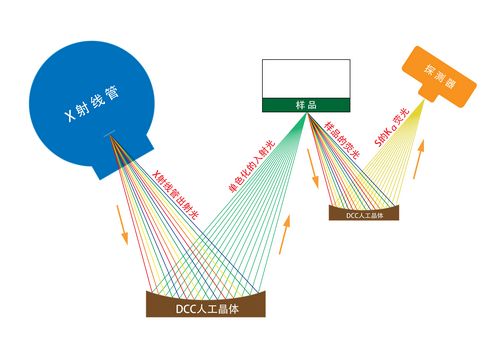

The DM8116 adopts the point-to-point focused single-color excitation wavelength dispersion X-ray fluorescence (Monochromatic Excitation Beam Wavelength Dispersive X-Ray Fluorescence) analysis technology. This means that in the excitation optical path, a point-to-point focused optical device is used to single-colorize the emission spectrum from the X-ray tube, thereby reducing the continuous scattering background of the sample fluorescence spectrum. At the same time, three-dimensional focusing is achieved to increase the intensity of the single-colored lines or narrow energy bands of the required excitation X-rays, thereby improving the sensitivity. In the detection optical path, another point-to-point focused optical device is used to disperse the fluorescence spectrum for high-resolution detection. At the same time, three-dimensional focusing is achieved to increase the intensity of the sample characteristic fluorescence lines required for collection, thereby improving the sensitivity. As a result, the detection limit is significantly reduced. Compared with traditional EDXRF, it is reduced by 1 to 2 orders of magnitude. Compared with traditional high-power (such as 4kw) WDXRF, it is much lower as well.

Adopt

Monochromatic wavelength-dispersive X-ray fluorescence (MWDXRF) analysis technology

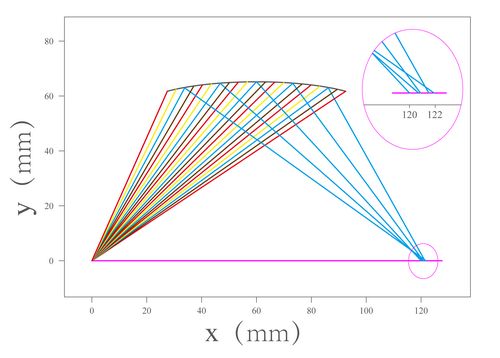

High diffraction efficiency logarithmic spiral double curved conical (LSDCC) artificial crystal

A microfocus thin beryllium window X-ray tube with a reasonable combination of kV, mA and target material.



Standard

GB/T 11140

ISO20884

SH/T 0842

ASTM D2622

ASTM D7039

ASTM D7220



Technical Parameters

Parameter

Specification

Voltage

≤50 keV

Current

≤2 mA

Power

≤50 W

Target Material

Ag (Silver)

Detector

Ultra-thin Beryllium Window Proportional Counter Tube

Detection Limit (300s)

0.33 ppm

Measuring Range

3 times Detection Limit ~ 9.99%

Compliant Standards

GB/T 11140, ISO 20884, SH/T 0842, ASTM D2622, D7039, D7220, etc.

System Analysis Time

1 ~ 999 s

Recommended

Trace: 300 s
Constant: 60 s

Ambient Temperature

5 ~ 40 °C

Relative Humidity

≤85% (at 30 °C)

Power Supply

220V ±20V, 50Hz, ≤200W

Measurement Atmosphere

Self-purging system or Helium

Dimensions & Weight

330mm (W) × 460mm (D) × 350mm (H),25KG
