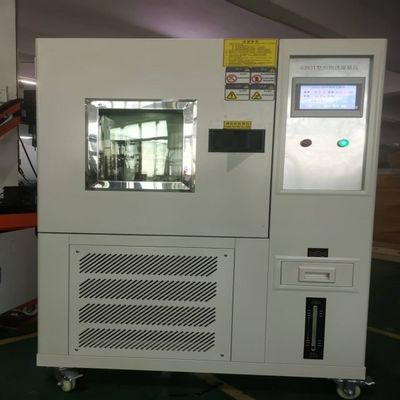

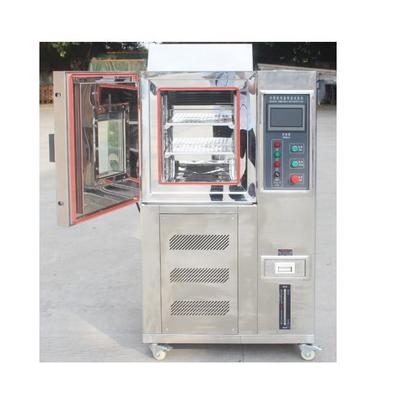

BS 7209 JIS L1099 ASTM E90-00 Fabric Moisture Permeability Tester Textile Moisture Permeation Meter
Introduction
The fabric moisture permeability tester is used to measure the moisture permeability of various fabrics (including moisture-permeable coated fabrics) such as medical protective clothing and windbreakers, as well as nonwoven fabrics for clothing like cotton wadding and space cotton.
Test Principle
Place the moisture permeation cup containing desiccant or water and sealed with fabric samples in a sealed environment with specified temperature and humidity. Calculate the moisture permeation amount based on the change in the mass of the moisture permeation cup (including the sample and desiccant or water) within a certain period of time.
Compliant with standards
YY0506 Surgical drapes, gowns and clean suits for patients, medical staff and instruments
GB 19082-2009 Technical Requirements for Medical Disposable Protective Clothing -
GB/T 12704 "Method for determination of water vapor transmission rate of fabrics - Cup method A - Absorption method"
ASTM E90-00 "Standard Test Method for Water Vapor Transmission of Materials - Desiccant Method"
JIS L1099 "Method for Measuring Moisture Permeability of Fabrics - Moisture Permeability Cup Method A1 - Absorption Method"
BS 7209 "Test Methods for Moisture Permeability of Textiles"
Instrument characteristics
1. Touchscreen control, with both Chinese and English menus, and a human-machine dialogue mode, making operation convenient.
2. High-precision temperature and humidity sensors, with control adopting PID algorithm, have small fluctuations and effectively prevent temperature and humidity overshoot.
3. It features temperature and humidity calibration functions, which can effectively prevent sensor deviations caused by long-term use.
4. PLC control, color touch screen operation, modular design, digital setting of temperature and humidity, intelligent control, real-time display of temperature, humidity and timing. Cooling method: air-cooled.
5. Input parameters via touchscreen, and the values of WVT g/(h.m²), WVP g/(h.mmHg.m²), PV, g.cm/(h.mmHg.m²) will be automatically calculated.
6. It can record temperature and humidity curves, facilitating the calculation and printing of large amounts of data reports. It is equipped with a micro printer and is compatible with multiple standards and measurement methods.
Technical Specification
|
Sample Box Temperature Control
|
-20 to 100℃; Resolution: 0.1℃
|
|
Temperature Control Accuracy of the Sample Box
|
±0.5℃
|
|
Sample Box Humidity Control
|
20%RH to 98%RH
|
|
Humidity Control Accuracy of the Sample Box
|
±2%RH (within 90%RH)
|
|
Humidity Output of the Test Chamber
|
Greater than or equal to 300 ml/h
|
|
Heating Power of the Test Chamber
|
0.6KW
|
|
Drying Oven Heating Power
|
1.8KW
|
|
Drying Cabinet Temperature Control
|
Room temperature to 199℃
|
|
Test Duration
|
1 - 999 hours and 59 minutes
|
|
Circulating Air Flow Speed
|
Adjustable from 0.02 to 1.5 m/s (The air speed is displayed on the LCD screen). Note: Customization can be done according to customer requirements.
|
|
Configuration
|
Standard equipment includes 6 standard moisture-permeable cups and 1 moisture-permeable rotating rack (with a diameter of 60 mm - national standard). Customization can be done according to customer requirements.
Note: Customized versions of permeability cups in accordance with the US standard (with a diameter of 70 mm - US standard ASTM E90-00) or other standards are available upon request.
|
|
Power Supply
|
AC 220V 50Hz
|
