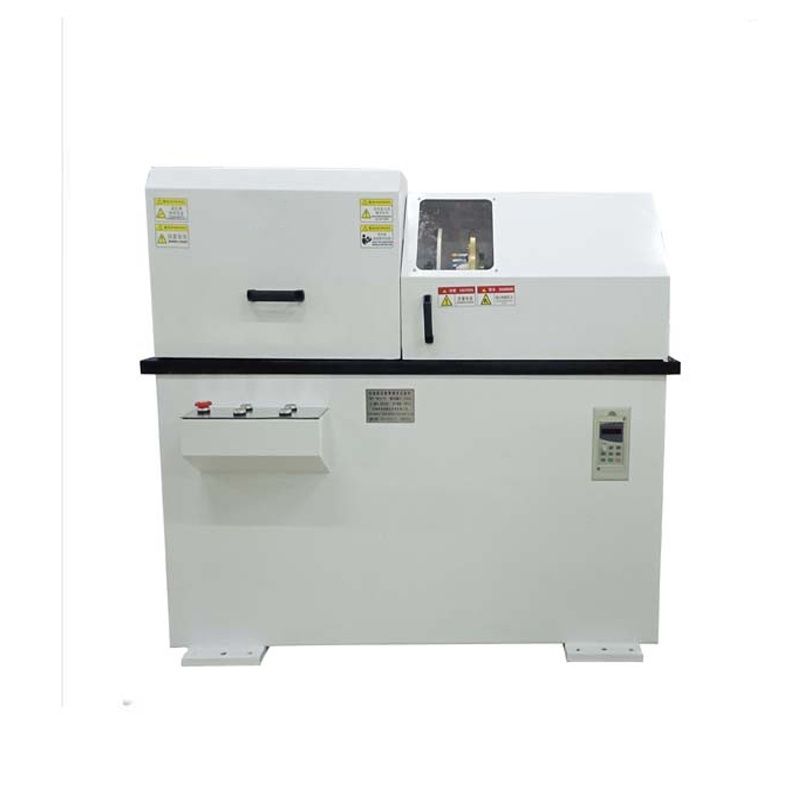

High-speed Current-carrying Friction Wear Testing Machine Rubbing Wear Tester

Large Image : High-speed Current-carrying Friction Wear Testing Machine Rubbing Wear Tester

Product Details:

Place of Origin:	China
Brand Name:	Lonroy
Certification:	ISO ASTM CE
Model Number:	LR-FHC

Payment & Shipping Terms:

Minimum Order Quantity:	1
Price:	Negotaible
Packaging Details:	wooden package
Delivery Time:	5-8 work days
Payment Terms:	L/C,D/A,D/P,T/T,Western Union
Supply Ability:	200

Contact Now

High-speed Current-carrying Friction Wear Testing Machine Rubbing Wear Tester

Description

Warranty:	1 Year	Constant Load, Heavy Load:	300N
Test Force Loading Accuracy:	±1%FS	Contact Form:	Spindle Type

High-speed Current-carrying Friction Wear Testing Machine Rubbing Wear Tester

Product Introduction

This high-speed current-carrying friction and wear testing machine is mainly used to study the friction and wear performance of the current-carrying device in locomotives or similar devices during high-speed operation.

Product Parameter

Constant load, heavy load	300N
Test force loading accuracy	±1%FS
Dynamic alternating loading	Sine wave, triangular wave, ramp wave
Dynamic heavy load with high frequency	30HZ
Spindle speed	200 - 12000 rpm continuous speed regulation
Measure the maximum value of the friction torque	30N.m
Diameter of the pin sample	According to the sample requirements
Large diameter of the disc sample	200mm
Contact form	Spindle type
Measurement range of wear amount	0 to 10mm
Measurement accuracy of wear amount	±1%
Current carrying range	0 - 800A (Reserved current-carrying interface)
Loading method	Separate constant load and dynamic loading device (various waveform loading methods can be set according to research assessment requirements)
Control method	Real-time data control by computer
Mainframe power	15KW
