Porous Ceramic Compressive Strength Tester Ceramic Compression Test Equipment

Large Image : Porous Ceramic Compressive Strength Tester Ceramic Compression Test Equipment

Product Details:

Place of Origin:	China
Brand Name:	Lonroy
Certification:	CE ISO ASTM
Model Number:	LRDY

Payment & Shipping Terms:

Minimum Order Quantity:	1
Price:	Negotaible
Packaging Details:	wooden package
Delivery Time:	5-8 work days
Payment Terms:	L/C,D/A,D/P,T/T,Western Union,MoneyGram
Supply Ability:	200

Contact Now

Porous Ceramic Compressive Strength Tester Ceramic Compression Test Equipment

Description

Voltage:	220V/380V	Maximum Load:	10000, 20000, 50000 (N)
Loading Rate:	50 - 7 KN/min	Platen Diameter:	50 Mm
Warranty:	1 Year	Certification:	Includes Calibration Certification
Highlight:	Ceramic Compressive Strength Tester , Compressive Strength Tester 380V , Ceramic Compression Test Equipment

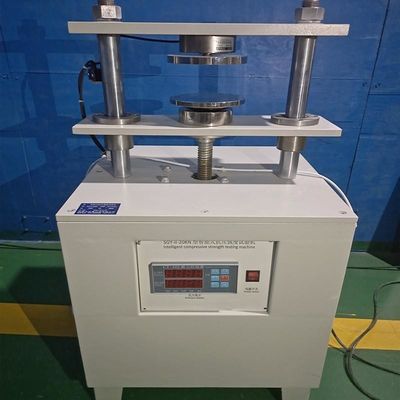

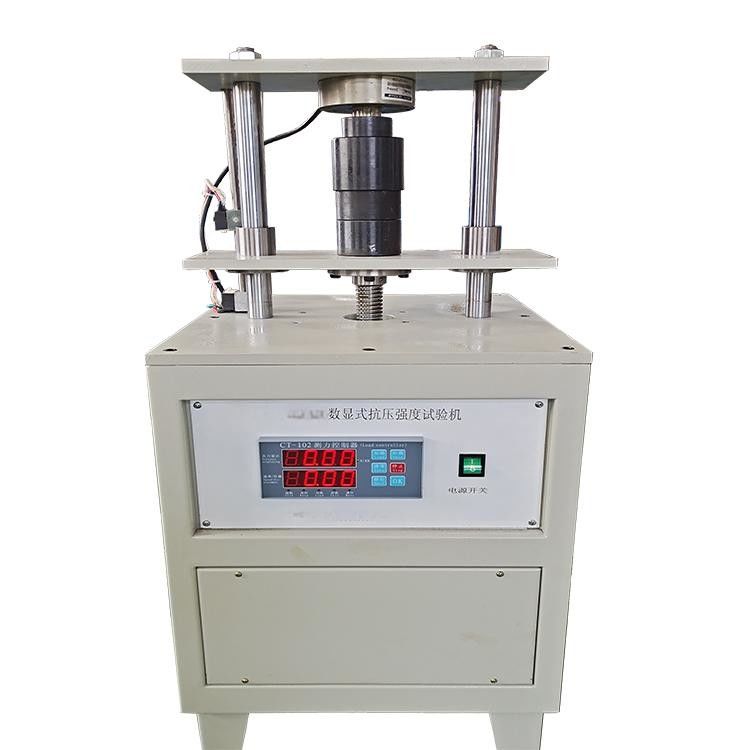

LRDY Digital Display Porous Ceramic Compressive Strength Testing Instrument Ceramic Compression Tester

1.Description:

This instrument complies with the "GB-T 8489-2006 Fine Ceramics Compressive Strength Test Method" and "1964-1996 Porous Ceramics Compressive Strength Test Method". It is suitable for the determination of the compressive strength of high-strength engineering ceramics and high-strength functional ceramics in mechanical components and structural materials at room temperature. It is also applicable for the compressive strength tests of non-metallic materials such as glass, refractory materials, and insulation materials.

2.Technical Parameter

Parameter	Specification
Maximum Load	10000, 20000, 50000 (N) (selectable among these or other specifications)
Loading Rate	50 - 7 kN/min (adjustable)
Platen Diameter	50 mm (other sizes customizable as per customer requirements)
Data Processing	Microcomputer-controlled, accuracy ±0.5% FS
Voltage	220V (for 50,000N and below); 380V (for specifications above 50,000N)
Pressure Display	Digital pressure display with peak hold function
