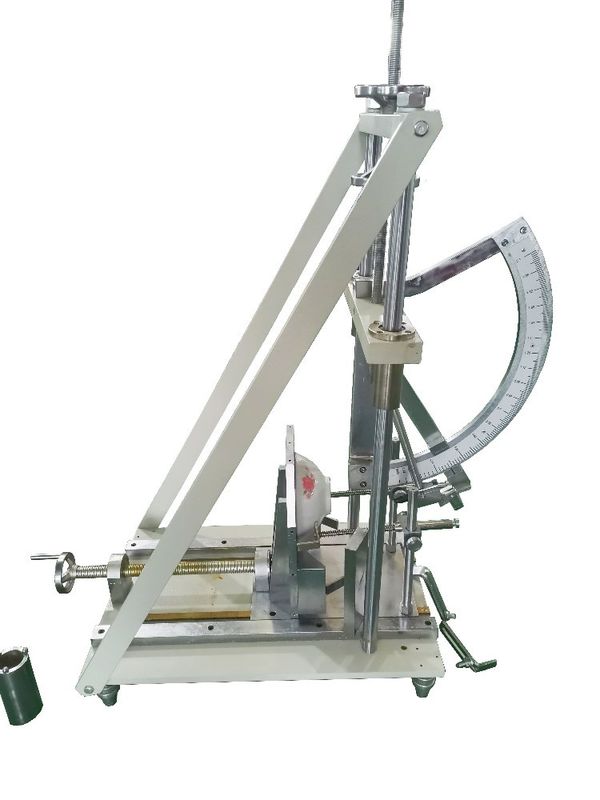

YCJ ASTM C 368 Pendulum Impact Testing Machine Ceramics Impact Tester

YCJ ASTM C 368 Pendulum Impact Testing Machine Ceramics Impact Tester
YCJ ASTM C 368 Pendulum Impact Testing Machine Ceramics Impact Tester

Large Image :  YCJ ASTM C 368 Pendulum Impact Testing Machine Ceramics Impact Tester

Product Details:
Place of Origin: China
Brand Name: Lonroy
Certification: CE ISO ASTM
Model Number: YCJ
Payment & Shipping Terms:
Minimum Order Quantity: 1
Price: Negotaible
Packaging Details: wooden package
Delivery Time: 5-8 work days
Payment Terms: L/C,D/A,D/P,T/T,Western Union,MoneyGram
Supply Ability: 200
Contact Now

YCJ ASTM C 368 Pendulum Impact Testing Machine Ceramics Impact Tester

Description
Machine Size: 750×400×1000 Mm Net Weight: 95KG
Max Height: 300mm Scale Division: 0.014 J
Max. Impact Energy: 2.1J Warranty: 1 Year
Certification: Includes Calibration Certification
Highlight:

astm c 368 impact tester

,

astm c 368 impact testing machine

YCJ ASTM C 368 Pendulum Impact Testing Machine Ceramics Lmpact Tester

1.Description:

Description:
This daily-use ceramic impact testing instrument is used for impact tests on the centers of flat tableware and concave vessels, as well as impact tests on the edges of concave vessels. The impact test on the edge of flat tableware involves either glazed or unglazed samples. The impact test at the center of the vessel is used to measure: 1. The energy of the initial strike that causes the initial crack. 2. The energy required for complete breakage.
2.Standard:
GB/T 4742 - Method for Measuring Impact Toughness of Domestic Ceramics, QB/T 1993-2012 "Test Method for Impact Resistance of Ceramic Ware", and the American standard ASTM C 368 - Test Method for Impact Resistance of Ceramic Ware.

3.Technical Parameter

Parameter Specification
Max. Impact Energy 2.1 J
Scale Division 0.014 J
Max. Pendulum Angle 120° (corrected from ºC to degree symbol)
Pivot-to-Impact Distance 300 mm
Table Adjustment Range • Vertical: 120 mm
• Longitudinal: 210 mm
Sample Specifications • Max Ø: 300 mm
• Max height: 300 mm
• Applicable to plates, bowls, cups
Physical Dimensions • Net weight: 95 kg
• Machine size: 750×400×1000 mm
Test Procedures
- Concave Ware Edge Impact Start: 0.027 J
Increment: 0.014 J
- Flatware Edge Fracture Option 1: Start 0.136 J → +0.027 J
Option 2: Start 0.027 J → +0.014 J
- Flatware Impact Sequence Start: 0.027 J → +0.014 J (until initial crack)
Then: +0.028 J (until failure)
