DHF186 Multi Element Express Meter 1KW Raw Material Analyzer

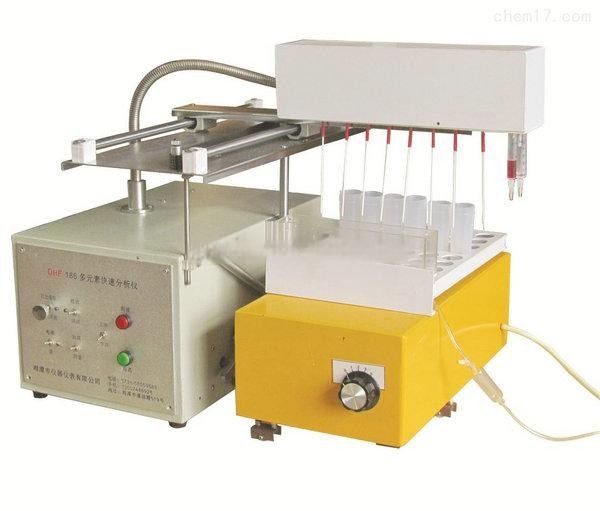

Large Image : DHF186 Multi Element Express Meter 1KW Raw Material Analyzer

Product Details:

Place of Origin:	China
Brand Name:	Lonroy
Certification:	CE ISO ASTM
Model Number:	DHF 186

Payment & Shipping Terms:

Minimum Order Quantity:	1
Price:	Negotaible
Packaging Details:	wooden package
Delivery Time:	5-8 work days
Payment Terms:	L/C,D/A,D/P,T/T,Western Union,MoneyGram
Supply Ability:	200

Contact Now

DHF186 Multi Element Express Meter 1KW Raw Material Analyzer

Description

Power Supply:	220V AC, 50Hz	Power Consumption:	1KW
Temperature:	25±5°C	Relative Humidity:	≤85% RH
Warranty:	1 Year	Certification:	Includes Calibration Certification
Highlight:	Multi Element Express Meter , Express Meter 1KW , Raw Material Analyzer

DHF186 Multi-Element Express Meter Raw Material Analyzer

1.Description:

This instrument is based on the 85 model and incorporates an automatic rotation and mixing system for solutions and samples. It not only simulates the manual mixing process but also eliminates this time-consuming and precisely controlled step. At the same time, the manual movements in three-dimensional space (up and down, front and back, left and right) have been automated (the patent for automation is currently being applied for). This important aspect significantly enhances the analysis speed and operational convenience. It is particularly suitable for the rapid analysis of large samples.

2.Technical Parameter

Parameter Category	Specifications
1. Measurable Elements & Ranges
SiO2, Al2O3, Fe2O3, TiO2, CaO, MgO, ZrO2, SnO, ZnO, NiO, CoO, MoO3, V2O5, CuO, Mo	0.01 - 99.9%
K2O, Na2O, Li2O, MnO, Cr2O3	0.01 - 15%
B2O3, P2O5	0.01 - 30%
PbO	0.01 - 99%
BaO	0.01 - 10%
Note: Detection limit extendable to 0.001% for selected elements
2. Sample Types
Silicates/Aluminates	Ceramic/glass/cement raw materials & products; Refractories; Inorganic non-metallic materials
Non-ferrous Metals & Chemicals	Chromium/V/Mn/Ni/Ti products; Phosphates; Co/Zn/Fe/Mo oxides; Borates; Barium carbonate; Sodium silicate; Red lead; Molybdenum ores & alloys
3. Instrument Channels
Sampling Channels	7
Measurement Channels	6
4. Performance
Measurement Stability	±2 digits within 5 minutes
Test Repeatability	100% compliance (±1 digit) in 20 consecutive tests
Throughput	10 samples per run
5. Analysis Speed
Routine Elements (SiO2, Al2O3, Fe2O3, TiO2, K2O, Na2O, CaO, MgO)	4 samples in 2 hours
Other Elements	4-6 hours
6. Operating Conditions
Power Supply	220V, 50Hz
Power Consumption	1 kW
Ambient Temperature	25±5°C
Relative Humidity	≤85% RH

Tag:

Contact Person: Ms. Lilianne Chen

Tel: 13751328225

Fax: 86-769-83078748
