Product Details:
|
Dimension: | (L*W*H)205*67*80mm | Weight: | 500g |
---|---|---|---|
Measuring Aperture: | Φ8mm Φ4mm | Battery: | Rechargeable Lithium-ion Battery 3. 7V @ 3200mAh |
Operating Temperature: | 0~40ºC(32~104°F) | Storage Temperature: | -20~50ºC(-4~122°F) |
Highlight: | NR60CP Portable Spectrophotometer,Portable Spectrophotometer 8mm,Portable Spectrophotometer 4mm |

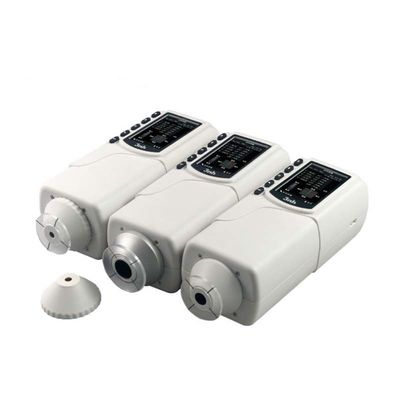

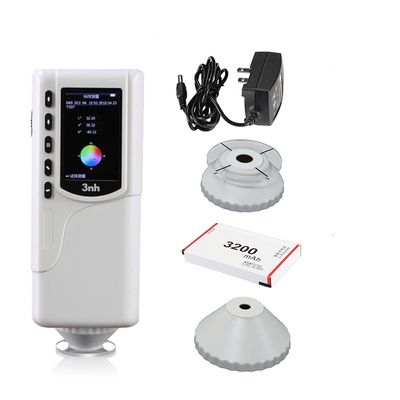

NR60CP Portable Spectrophotometer With 8mm 4mm Apertures Color Indexes Mesaurement
1. Use
NR60CP high cost-performance colorimeter features high precision, powerful functions and accurate measurement, and has been warmly welcomed by customers.
2. Application Industry
The NR60CP spectrophotometer is widely used in plastics, electronics, paints, inks, textiles, clothing, printing and dyeing, food, medical care, cosmetics, industry, scientific research institutes, schools, laboratories, etc. It can precisely measure various color indices in various color Spaces, is easy to use and has powerful functions. The instrument is equipped with high-end color management software and can be connected to a PC to achieve more extended functions.
3. Product Features
1. Switchable 8mm and 4mm measuring apertures, easy to measure concave surface.
2. Higher measurement stability and accuracy, Delta E ab<0.03.
3. More color spaces, various color indexes, extensive applicability.
4. Double locating: illuminating locating and cross locating
5. Configured with high-capacity rechargeable Li-ion battery
6. Built-in white plate parameters and physical white calibration board, easy to operate;
7. New integrating sphere optical path design, more stable measurement;
8. Measurement data can pass national metrology authentication.
4. Specification
Model | NR60CP |
Illuminating/Viewing Geometry | 8° / d; CI E No.15, GB/ T 3978 |
Light Source | LED sources |
Sensor | Silicon photodiode array |
Measuring Aperture | Φ8mm large area end-face; Φ4mm small area concave-convex end-face |
Color Space | CI E L AB, XYZ, LCh, CI E RGB, CI E LUV |
Other Chromaticity Data | WI ( E313, CI E, AATCC, Hunt er ),YI ( D1925, 313), Color Fastness, Staining Fastness, J PC79, BFD( 1. 5: 1), FMCI I |
Observer | CI E 10° |
Illuminant | D65, A, C, D50, F2, F6, F7, F8, F10, F11, F12 |
Display Data | Colorimetric Value, Color Difference Value/Graph, PASS/FAIL Result, Color Offset, |
Measurement Time | 0. 4s |
Repeatability | ΔE* ab 0. 03(Average of 30 measurement of standard white plate within 5s) |
Errors between each instrument | within Delta E*ab 0.2 |
Dimension | (L*W*H)205*67*80mm |
Weight | 500g |
Battery | rechargeable lithium-ion battery 3. 7V @ 3200mAh |
Lamp Life | 5 years, more than 1.6 million measurements |
Display Screen | TFT 2.8 inch(16: 9) |
Interface | USB/RS-232 |
Data Memory | 100 Standards, 20000 Samples |
Operating Temperature | 0~40ºC(32~104°F) |
Storage temperature | -20~50ºC(-4~122°F) |
Optional Accessory | miniature thermal printer, powder test box |
