BGD 180 Intelligent Touch-Screen Rotothinner ISO 2884-2

BGD 180 Intelligent Touch-Screen Rotothinner ISO 2884-2

1.Description

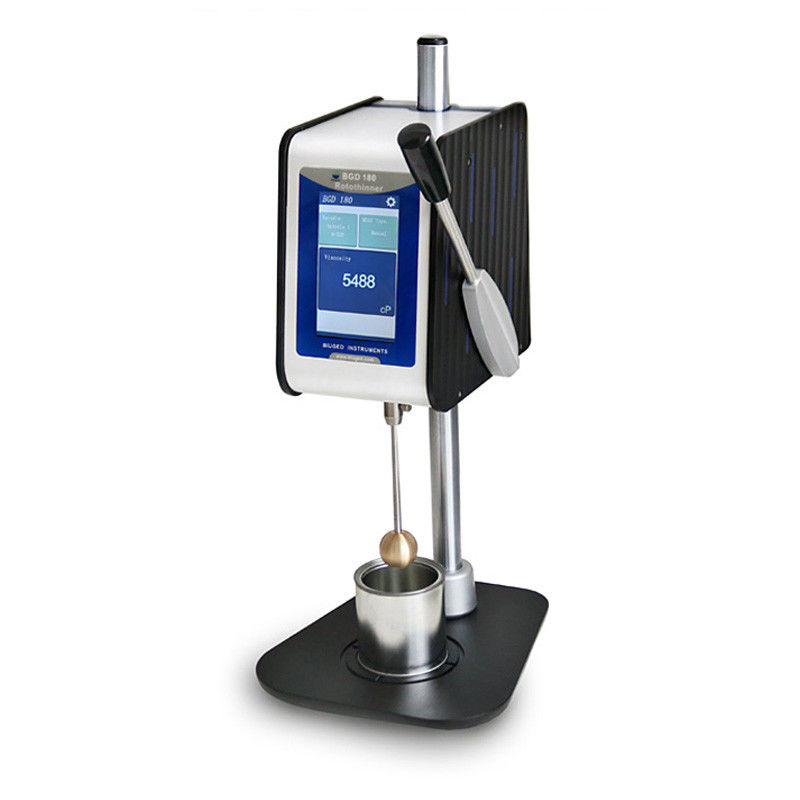

This is a simple, easy to use rotational viscometer for testing the viscosity characteristics of samples at three different shear rates (20S-1, 44S-1, 200S-1) and also for measuring the viscosity characteristics of the same sample as the shear time varies. The product meets the requirements of ISO 2884-2 "Viscosity of color paints and varnishes by means of a rotational viscometer Part 2: Disc or ball viscometer operated at a specified rate" and BS 3900 A7 and other standards.

Features:

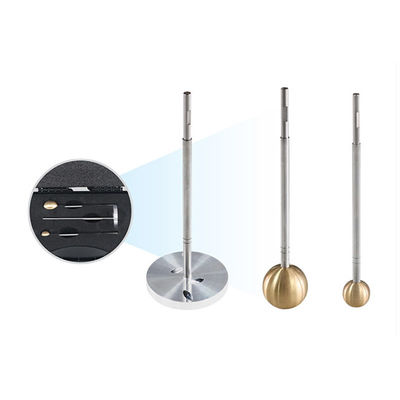

* Standardly equipped with the following three rotors to meet different testing ranges
No.1 Disc rotor: Provides a shear rate of about 200S-1 for the determination of fluids with viscosities from 0 to 22 P (2200mPa.s).
No.2 Large Ball Rotor: Provides a shear rate of about 44S-1 for measuring fluids with viscosities from 0.1 to 75 P (7500mPa.s).
No.3 Small Ball Rotor: Provides a shear rate of approximately 20 S-1 for measuring fluids with viscosities from 1 to 350 P (35000 mPa.s).
* Standard size 250 ml sample cup: 74 mm internal diameter, 74 mm height.
*Three reading modes: manual, maximum value hold and timed reading.

2.Technical Parameter
