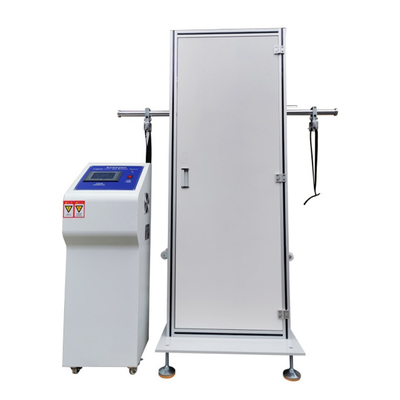

QB/T 1586 Bag Suitcase Lifting Placing Testing Machine Luggage Lifting And Lowering Tester

Large Image : QB/T 1586 Bag Suitcase Lifting Placing Testing Machine Luggage Lifting And Lowering Tester

Product Details:

Place of Origin:	China
Brand Name:	Lonroy
Certification:	ISO ASTM CE
Model Number:	LR-A103

Payment & Shipping Terms:

Minimum Order Quantity:	1
Price:	Negotaible
Packaging Details:	wooden package
Delivery Time:	5-8 work days
Payment Terms:	L/C,D/A,D/P,T/T,Western Union
Supply Ability:	200

Contact Now

QB/T 1586 Bag Suitcase Lifting Placing Testing Machine Luggage Lifting And Lowering Tester

Description

Weight:

Approximately 120 Kilograms

Dimensions:

1500*1400*1800mm

Power Supply:

1Ω, 220V/50HZ

Transmission Motor:

Variable Frequency Motor

Highlight:

Luggage Lifting Tester

Luggage Lifting Placing Testing Machine

Suitcase Lifting Placing Testing Machine

QB/T 1586 Bag Suitcase Lifting Placing Testing Machine Luggage Lifting And Lowering Tester

Introduction

The luggage lifting and lowering testing machine is a testing instrument specifically designed for the lifespan test of luggage straps and handles. It is one of the important equipment for evaluating the performance and quality of luggage products. The product data can serve as a reference standard for judging the performance of luggage and can also be used as an important basis for each purchaser to select luggage.

Compliant with standards

QB/T 1586.3

Technical Specification

Adjustable height	0 - 300mm; The eccentric wheel drives the mechanism to facilitate stroke adjustment.
Amplitude	Adjustable from 0 to 10 cm
Speed	Adjustable from 0 to 30 times
Weights	One 5kg weight and one 10kg weight
Counting quantity	Displays from 0 to 999,999 times (Counting can be stopped according to settings)
Transmission motor	Variable frequency motor
Power supply	1Ω, 220V/50HZ
Dimensions	150014001800mm
Weight	Approximately 120 kilograms

Tag:

Contact Person: Ms. Kaitlyn Wang

Tel: 19376687282

Fax: 86-769-83078748
