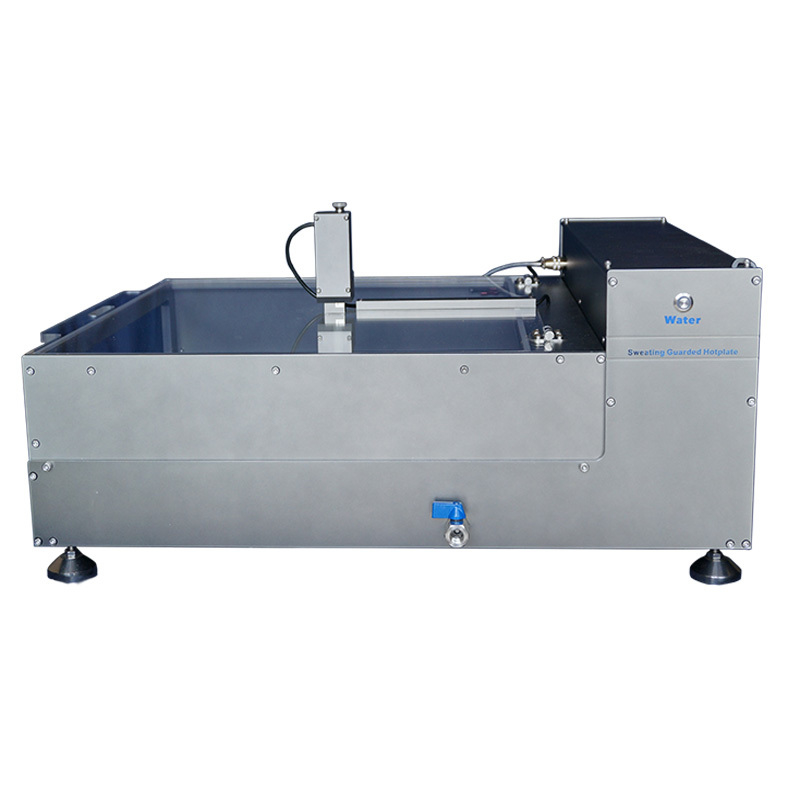

Introduction

The thermal and moisture resistance tester is currently the most professional and advanced product for thermal and moisture resistance testing. It features a heating plate that fully simulates the structure of human skin, does not mold, and is easy to clean. It is equipped with an original automatic water supply system that ensures stable water supply without any adjustment and prevents leakage. The independent and integrated design separates the test host from the environmental test chamber, allowing users to use self-purchased environmental test chambers, which is convenient for maintenance and calibration and reduces the burden on users. The air duct structure can be easily disassembled and can be connected to an external wind hood to meet the static test standard without wind speed.

Relevant standards

GB/T11048,ISO11092,ASTMF1868-09,BS8515,ASTMD1518-2014,JIS L1096-2010,ASTM F 1868-02

Scope of Application

Thermal and moisture resistance testing, clothing, cotton-padded quilts, comfort performance testing of thermal clothing, human comfort testing of textile fabrics, etc.

Technical Features

1. The world's first independent design concept, with an integrated design of the control system and automatic water supply system, allowing users to choose different environmental test chambers.

2. Automatic water supply and drainage system, powerful water addition system (during the wet resistance test, the heating plate can release water more quickly).

3. The machine can quickly reach a stable test state. According to the thickness of the sample, it automatically adjusts the PID control parameters to quickly meet the test conditions.

The wind speed is continuously adjustable from 0 to 1.2 m/s, which can meet any standards for wet resistance, thermal resistance and warmth retention performance tests.

5. The width of the thermal guard ring is 127mm, ensuring that the heat flow is only transferred from the test sample.

6. It connects to the computer via wireless Wi-Fi communication, making the connection more convenient.

7. The whole machine is equipped with a thickened aluminum alloy shell, ensuring a service life of more than 20 years for the machine.

8. Friendly and convenient test software, with various test standards configured in the test software, making it convenient for users to use.

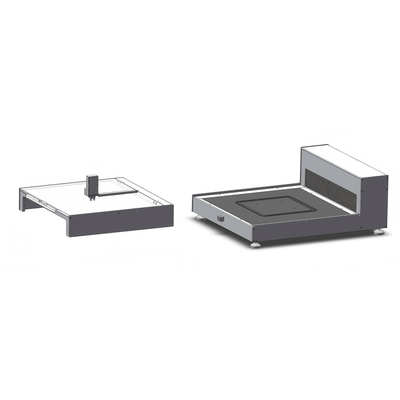

Product static test disassembly diagram

The duct structure can be easily disassembled and can be equipped with an external wind cover, meeting the static test standards without wind speed.

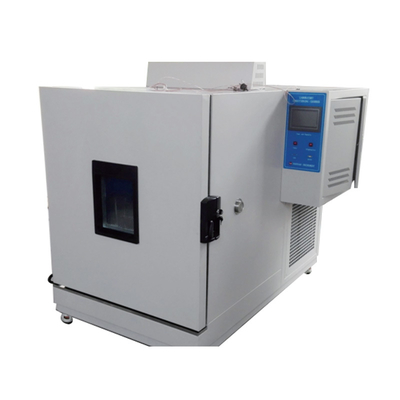

Environmental test chamber

Humidity and temperature controller: Imported programmable mode with bilingual (Chinese and English) display.

Analysis accuracy: 0.1℃, 1%, P.I.D control

Temperature range: 10℃ ~ 80℃

Humidity range: 30 - 80% R.H

Temperature and humidity accuracy: ±0.5℃, ±2.5%R.H

Humidity sensor: Electronic type, from Vaisala of Finland

Heating time: 10℃ to 80℃ approximately requires 35 minutes.

Cooling time: Approximately 40 minutes for a temperature drop from 50℃ to 10℃

Inner box dimensions: 90x65x80cm

Outer box dimensions: 180 × 136 × 160 cm

Inner box material: SUS#304 stainless steel

Outer box material: Galvanized sheet with paint coating

Insulation material: Rigid foam

Freezing system: French Thermo King (3P) compressor

Weight: Approximately 120 kilograms

Power Supply: AC 380V 50HZ Three-phase five-wire system 10KW
