FZ/T01071 Fabric Capillary Effect Measuring Instrument Water Absorption And Air Permeability Tester

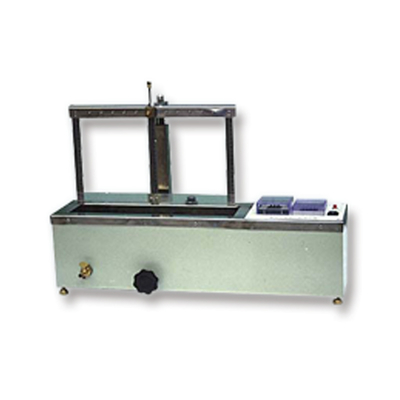

Large Image : FZ/T01071 Fabric Capillary Effect Measuring Instrument Water Absorption And Air Permeability Tester

Product Details:

Place of Origin:	China
Brand Name:	Lonroy
Certification:	ISO ASTM CE
Model Number:	LR-A135

Payment & Shipping Terms:

Minimum Order Quantity:	1
Price:	Negotaible
Packaging Details:	wooden package
Delivery Time:	5-8 work days
Payment Terms:	L/C,D/A,D/P,T/T,Western Union
Supply Ability:	200

Contact Now

FZ/T01071 Fabric Capillary Effect Measuring Instrument Water Absorption And Air Permeability Tester

Description

Power Supply:	AC 220V ± 10% 50Hz 400W	Dimensions:	680 × 235 × 430 Mm
Weight:	20 Kg	Measuring Scale:	0 - 200mm ± 1mm
Sink Dimensions:	400 × 90 × 110 Mm (approximately 2500 ML)	Operation Time Range:	≤ 99.99 Minutes
Pre-set Temperature Range:	≤ 60 ± 2℃
Highlight:	Water Absorption Tester , Air Permeability Tester , FZ/T01071 Fabric Capillary Effect Tester

FZ/T01071 Fabric Capillary Effect Measuring Instrument Water Absorption And Air Permeability Tester

Scope of Application

This instrument is used to measure various fabric samples. Due to the capillary effect of the fibers, the liquid in the constant temperature bath is lifted to a certain height, thereby evaluating the water absorption and air permeability of the fabric.

Relevant standards

FZ/T01071 and others

Product Features

1. This instrument is equipped with preset temperature, automatic temperature control, and a device that accurately displays the test time. The water tank and the crossbeam are made of stainless steel, which can resist corrosion. The instrument has a reasonable structure, stable performance, and is easy to operate.

2. The shell and water tank are made of all stainless steel, which are elegant and practical, resistant to corrosion, and of high quality.

3. Equipped with a time alarm.

Technical Specification

Maximum number of test roots	10
Tension clamp weight	3 ± 0.5 grams
Pre-set temperature range	≤ 60 ± 2℃
Operation time range	≤ 99.99 minutes
Sink dimensions	400 × 90 × 110 mm (approximately 2500 mL)
Measuring scale	0 - 200mm ± 1mm
Power Supply	AC 220V ± 10% 50Hz 400W
Dimensions	680 × 235 × 430 mm
Weight	20 Kg

Tag:

Contact Person: Ms. Kaitlyn Wang

Tel: 19376687282

Fax: 86-769-83078748
