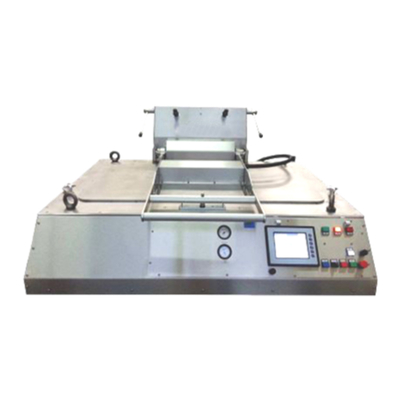

Flexible Container Integrity Detector Flexible Containers Non-destructive Integrity Level Leak Detector
Introduction
The flexible container integrity detector is ideal for the inspection of flexible containers. This method involves creating a vacuum in the chamber where the product is placed, isolating it and measuring the pressure changes within the product.
These changes directly relate to the integrity level of the product.
The non-destructive leak detector is used for flexible containers or bagged medicines or medical applications.
It is designed in accordance with standard regulations to replace destructive leak tests. This testing equipment can quickly and simply quantify the degree of product sealing.
User-friendly and ergonomic:
A large high-resolution touch screen provides a clear user interface and enables quick and intuitive understanding of the instrument.
Product application
The non-destructive leak detector is used for flexible containers or bags for pharmaceutical or medical purposes.
Product operation
The operator places the product in the measuring tray.
He/She closes the tray and starts the test.
Vacuum installation and stabilization
The instrument measures the pressure changes within the product over a certain period.
The test chamber returns to atmospheric pressure.
The test results show: Green light: Pass, or Red light: Fail.
The measurement values can be output in Excel or PDF format.
Product Features
Non-destructive testing:
All tested (approved) products can be sold.
It fundamentally eliminates the testing costs for scrapped products.
Quick testing: For better process control, the sample size or frequency has been improved.
100% batch testing for important, high-risk products and quarantine products.
Measurement certification of calibration reference products:
Verification of measurement results, real-time verification of the measurement chain
Test bench verification, certification qualifications (IQ, OQ, PQ), interchangeability standards
Physical measurement of tightness:
The sealing value can be calibrated.
Test results are not affected by the operator, alarms, etc.
SPC (Statistical Process Control)
Technical Specification
|
Dimensions
|
Width: 1286mm, Height: 569mm, Depth: 1046mm; Weight: 250kg
|
|
Standard chamber dimensions (maximum packaging bag dimensions)
|
50×100×1000mm
|
|
Communication
|
Graphics, 5.7" touch screen, status lights
|
|
Power supply
|
24 V DC / 5 A (adapter provided)
|
|
Air supply
|
Clean and dry air, quality conforms to ISO 8573-1; 100 - 600 kPa
|
|
Operating temperature
|
+15°C to +25°C
|
|
Storage temperature
|
0°C to 60°C
|
|
Standard test pressure
|
-10 kPa to -60 kPa, mainly depending on the customer's product specifications
|
