Far-infrared Radiation Heating Up Tester Textiles Far Infrared Radiation Temperature Rise Testing Device

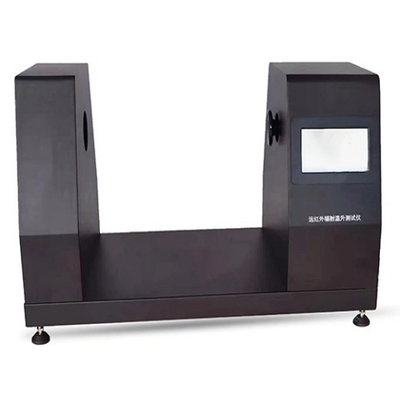

Large Image : Far-infrared Radiation Heating Up Tester Textiles Far Infrared Radiation Temperature Rise Testing Device

Product Details:

Place of Origin:	China
Brand Name:	Lonroy
Certification:	ISO ASTM CE
Model Number:	LR-A114

Payment & Shipping Terms:

Minimum Order Quantity:	1
Price:	Negotaible
Packaging Details:	wooden package
Delivery Time:	5-8 work days
Payment Terms:	L/C,D/A,D/P,T/T,Western Union
Supply Ability:	200

Contact Now

Far-infrared Radiation Heating Up Tester Textiles Far Infrared Radiation Temperature Rise Testing Device

Description

Product Name:	Textiles Far Infrared Radiation Heating Up Testing Device	Power Supply:	AC 220V ± 10%; 200W
Weight:	33kg	Dimensions:	Width 800mm X Depth 420mm X Height 480mm
Diameter Of The Perforation Hole:	60mm	Radiation Power:	150W
Highlight:	Far-infrared Radiation Heating Up Tester , Far-infrared Radiation Heating Up Tester , Textiles Heating Up Tester

Far-infrared Radiation Heating Up Tester Textiles Far Infrared Radiation Temperature Rise Tester

Introduction

The far-infrared radiation heating-up tester for textiles is used for various types of textiles including fibers, yarns, fabrics, nonwoven fabrics and their products. It measures the far-infrared performance of textiles through temperature rise tests.

Applicable standards
GB/T 30127

Product Features

1. It adopts industrial-grade color touch screens for display and control, featuring a user-friendly interface that is simple and easy to operate, making the process of operation more convenient.
2. Utilize the automatic measurement mode. With just one click, the testing process will be automatically completed.
3. Utilizing high-precision sensors, it can respond quickly and accurately to measure the current temperature.

Technical Specification

Color touch screen	7 inches
Radiation source	Main wavelength range 5 μm to 14 μm
Radiation power	150W
Distance from the sample surface to the radiation source	500mm
Diameter of the perforation hole	60mm
Temperature sensor	The test range is from 15℃ to 50℃, the indication error is no more than 0.1℃, and the response time is no more than 1 second.
Dimensions	Width 800mm x Depth 420mm x Height 480mm
Power supply voltage	AC 220V ± 10%; 200W
Weight	33kg

Tag:

Contact Person: Ms. Kaitlyn Wang

Tel: 19376687282

Fax: 86-769-83078748
