Product introduction:

DSC100A is a conventional differential sensor introduced by the company. The sensor is made of E pair of imported materials with high sensitivity. Signal acquisition circuit shield protection, strong anti-interference, high baseline stability.

The differential scanning calorimeter is a touch screen, which can be used for glass transition temperature test, phase transition test, melting and enthalpy value test, product stability, curing, oxidation induction period test, oxidation induction temperature, etc. Wide range of application.

DSC100A ISO 11357 High Sensitivity Differential Scanning Calorimeter Touch Screen Differential Scanning Calorimetry Analyzer

Technical parameters:

1. Temperature range: room temperature ~600℃ air cooling

2. Temperature resolution: 0.01℃

3. Temperature fluctuation :±0.01℃

4. Temperature repeatability :±0.1℃

5. Heating rate: 0.1 ~ 100℃/min

6. Data scanning: temperature scanning

7. Temperature control mode: temperature rise, constant temperature (automatic program control)

8.DSC range: 0 ~ ±500mW

9.DSC resolution: 0.01uW

10. Sensitivity of DSC: 0.01mW

11. Working power supply: AC220V/50Hz or customized

12. Atmosphere control gas: nitrogen, oxygen (automatic instrument switching)

13. Gas flow: 0-300mL/min

14. Gas pressure: 0.2MPa

15. Display mode: 24bit color, 7 inch LCD touch screen display

16. Data interface: standard USB interface

17. Parameter standard: Equipped with standard material (indium, tin), users can adjust the temperature by themselves

18. The upper computer is a three-in-one operating software, which is also suitable for thermogravimetric and synchronous instruments.

The instrument has several sets of thermocouples, one to test the sample temperature, the other to test the internal temperature of the instrument

DSC100A ISO 11357 High Sensitivity Differential Scanning Calorimeter Touch Screen Differential Scanning Calorimetry Analyzer

Technical features:

1. Industrial grade 7 inch touch screen with rich display information.

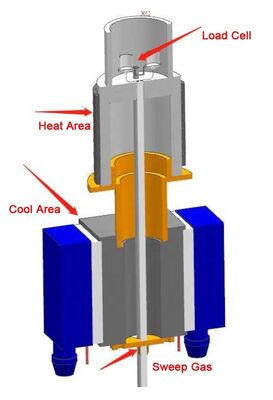

2. New metal furnace structure, better baseline, higher accuracy. Heating using indirect conduction mode, high uniformity and stability, reduce pulse radiation, better than the traditional heating mode.

3. USB communication interface, strong universality, reliable communication without interruption, support self-recovery connection function.

4. Automatic switching between two air flow, fast switching speed, short stability time. At the same time add a protective gas input.

5. The software is easy to operate.
